SR206 Parker Screener Specs, Dimensions & Technical Data - 2017 - 2026

Weight: 44t – Transport length: 16.9m – Transport width: 3m – Transport height: 3.53m – Plant type: RM – Screen width: 1.83m…

Weight: 44t – Transport length: 16.9m – Transport width: 3m – Transport height: 3.53m – Plant type: RM – Screen width: 1.83m

Check out detailed dimensions, specifications, information and technical data for Parker SR206 screener manufactured between 2017 - 2026. Get more in-depth insight with Parker SR206 screening machine. See information, like: Weight: 44t – Transport length: 16.9m – Transport width: 3m – Transport height: 3.53m – Plant type: RM – Screen width: 1.83m and more.

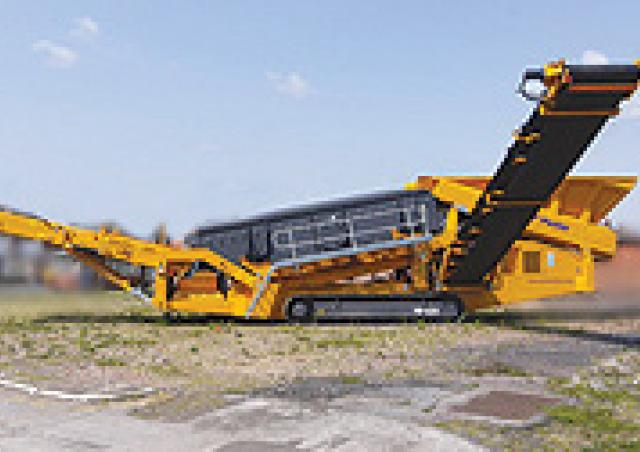

Mobile Screening Plants Parker SR206

Technical specs - SR206 Parker

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
44 t
Transport length
16.9 m
Transport width
3 m
Transport height
3.53 m
Plant type
RM
Screen width
1.83 m
Screen length
6.1 m
Drive power
168 kW
Maximum Number of screens
2
Hopper capacity
8.7 m³
Main conveyor width
1600 mm
Side conveyor width
1000 mm
Model series
SR

More technical details, like: type of screen, drive are available in the full technical specs.

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container
