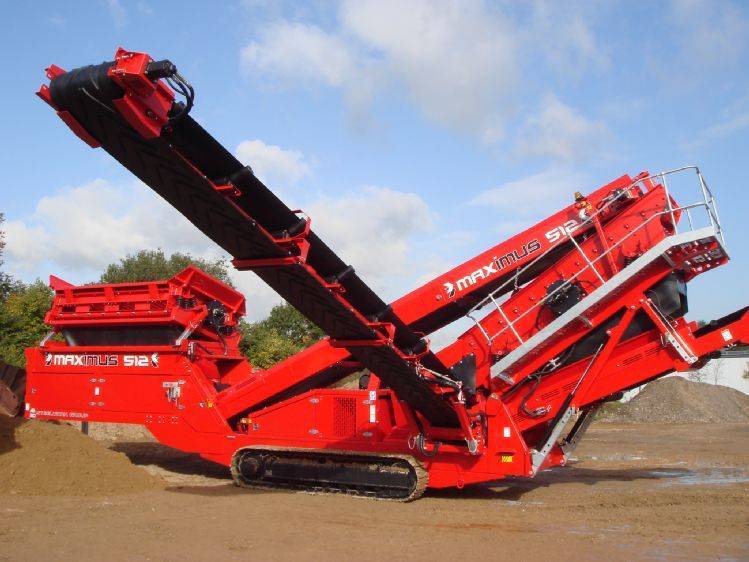

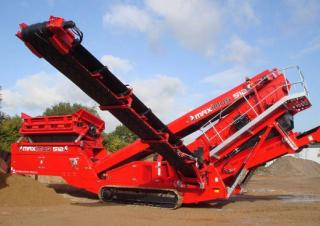

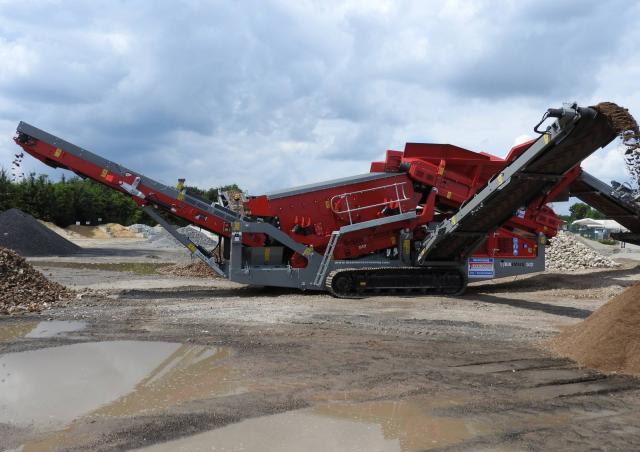

Maximus 512
- Weight:
- 26.8 t
- Transport length:
- 15.8 m
- Transport width:
- 3 m
- Transport height:
- 3.3 m
512 Maximus Screener Specs, Dimensions & Technical Data - 2017 - 2024
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - 512 Maximus
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 26.8 t
- Transport length
- 15.8 m
- Transport width
- 3 m
- Transport height
- 3.3 m
- Type of screen
- MS
- Plant type
- RM
- Screen width
- 1.5 m
- Screen length
- 3.6 m
- Drive power
- 96 kW
- Maximum Number of screens
- 2
- Hopper capacity
- 9.2 m³
- Main conveyor width
- 1200 mm
- Side conveyor width
- 650 mm
More technical details, like: drive, model series are available in the full technical specs.
Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container
Download datasheets (PDF)
