Screening Deck
Incline Screens

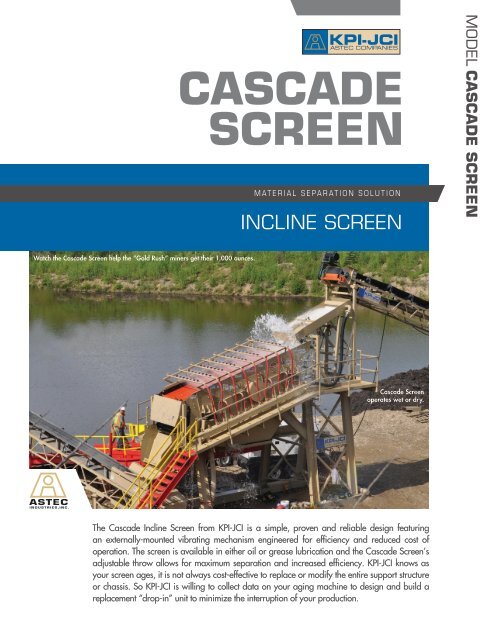

For screening operations that favor a circular stroke pattern, our incline screens ensure reliable and consistent screen performance with a wide selection of alternative designs. Choose from multiple deck configurations, wet or dry action, and portable or stationary set-up for the most accurate screening performance available. Producers can choose from Buzzer Screens, Cascade Incline Screens, Quarry Incline Screens, or Low-Profile Incline Screens to meet their application needs.
Quarry Incline Screens
Available in single- or dual-shaft configurations in sizes up to 8' x 24', our Quarry Incline Screens are engineered for the rigorous demands of today's high-production facilities. Robust construction, multiple deck configurations, and stroke combinations all work together to minimize operating costs. Oil bath lubrication is standard.
Low-Profile Incline Screens
Our Low-Profile Incline Screens operate at a 10- or 15-degree angle, which provides a moderate material travel speed, resulting in a high probability of separation. The reduced profile height makes Low-Profile Incline Screens suitable for portable installations at a more economical purchase price than a horizontal multi-shaft screen. Grease lubrication is available.
Horizontal Screens
Our horizontal screens deliver high productivity and efficiency in a low-profile package. The low screen height allows for operation in height-restricted areas and maximum portability. The triple-shaft design employs an oval motion stroke pattern that generates a more aggressive screening action, reducing plugging and blinding while providing extended bearing life. Multiple configurations are available for a wide range of applications, from fine screening to heavy scalping.
Application Flexibility
Adjustable oval motion length and timing angle provide optimal application flexibility. Standard, medium, and heavy-duty scalping configurations ensure optimal performance in varied applications.
Wet/Dry Configurations
A consistent and adjustable material travel speed, coupled with a low-profile height, make our horizontal screens ideal for wet and dry applications. Our horizontal screens are equipped with standard spray bar knock-out holes. An optional spray system, complete with manifold and spray nozzles, is also available. These screens are ideal to install on portable washing plants.
High Frequency Screens
Our high frequency screens offer ideal gradation control for reclaiming fines in both wet and dry applications. All high frequency screen decks are driven by variable-speed hydraulic vibrators for optimal screen efficiency and production. Producers save time and money with easy hydraulic screen angle adjustments and our unique rotary tensioning system, which ensures the quickest screen media changes in the market.
Hydraulic Vibrators
All high frequency screen decks are driven by variable-speed hydraulic vibrators (up to 4,200 RPM) for optimal screen efficiency and production. Electric vibrators operating at 3,600 RPM are available upon request.
Low Maintenance
The high frequency screen induces vibration directly into the screen media, leading to reduced maintenance and increased production and uptime.
Vari Vibe® Series
Vari Vibe Screens are ideal for post-screening applications and offer high frequency vibrations on all decks. These screens achieve the highest screen capacity in the market for fines removal, chip sizing, dry manufactured sand, and more.
Duo Vibe Series
Duo Vibe Screens are ideal for pre-screening applications by offering a scalper top deck with conventional frequency mounted over high frequency bottom decks. This configuration improves production needs earlier in the circuit by removing fines from coarser materials.
