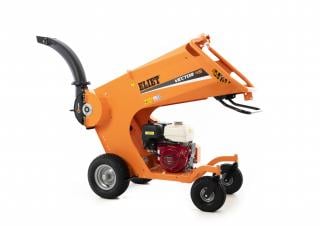

Eliet Vector 4S
- Weight (w/o. accessory):
- 325 kg
- Engine type:
- B
- Engine power:
- 9.6 kW
- Output:
- 3 m³/h
Vector 4S Eliet Vector 4S Specifications & Technical Data (2023—2026)
.jpg)

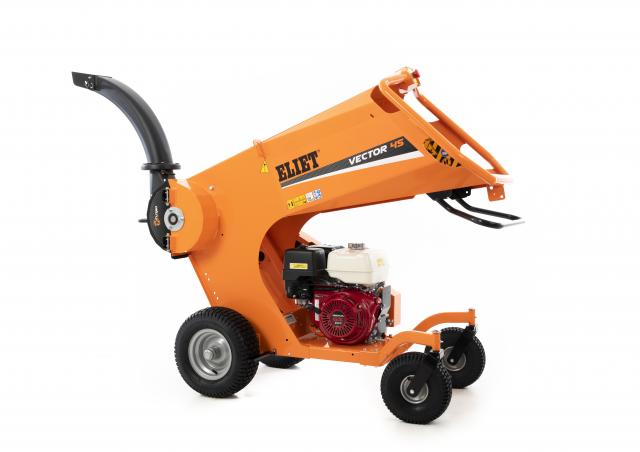

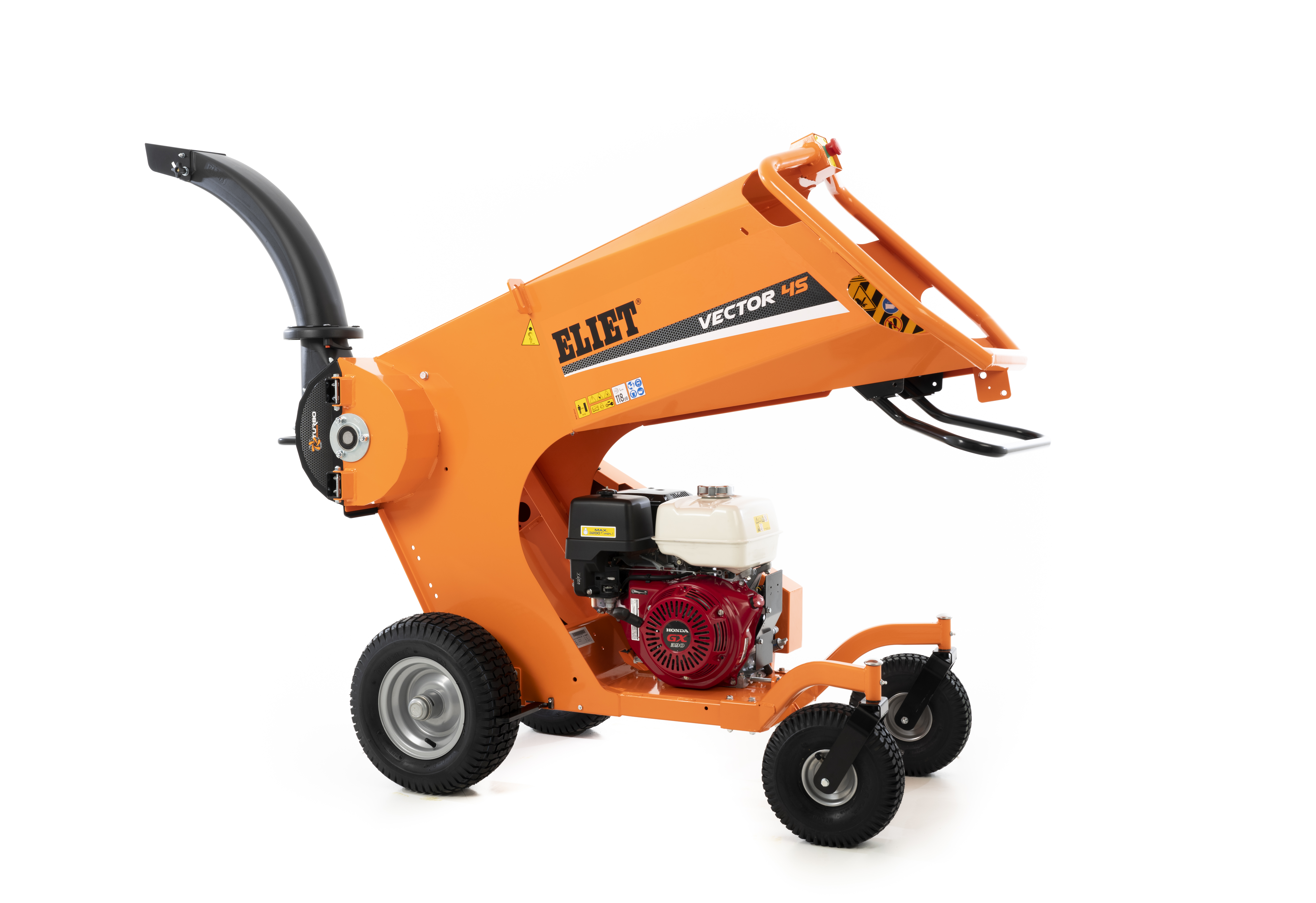

Technical specs - Vector 4S Eliet
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight (w/o. accessory)
- 325 kg
- Engine type
- B
- Engine power
- 9.6 kW
- Output
- 3 m³/h
- Drive
- M
- Outlet
- 80 mm
- Attachment
- FG
- Intake
- W
- Model series
- Vector
- Engine manuf.
- Honda
- Dimension lxwxh
- 407x485x449 mm
- Displacement
- 0.389 l
- Revolutions at max torque
- 2500 rpm
- Max. torque
- 26.4 Nm
- No. of cylinders
- 1
- Cylinder bore x stroke
- 88x64 mm
- Weight
- 31.5 kg
- Emission level
- V
More technical details, like: engine manufactor, travel speed are available in the full technical specs.
Basic model with blade and mounting resp. trailing device with power take-off: G incl. articulated shaft, M incl. motor, H incl. hydraulic motor and hoses
Special equipment
- conveyor belt
-
No
- Self-propelled
-
Yes
- Crawler
-
Yes
- Fast running axle up to 80 km/h
-
No
