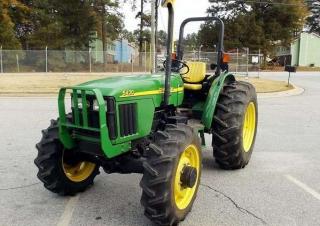

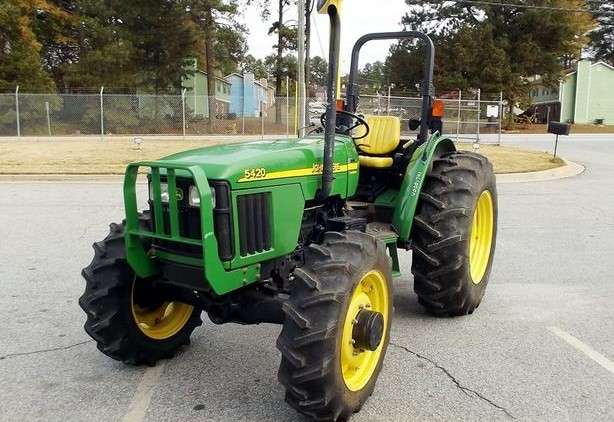

5420 John Deere 5420 Specifications & Technical Data (2002—2004)

Weight without attachment: 1.943t – Travel speed: 31.4km/h – Back tyres: 16.9-30 – Front tyres: 7.50-16 – Transport length: 3.69m – Transport width: 1.88m

Vehicles Compact Utility Tractors John Deere 5420

Technical specs - 5420 John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
1.943 t
Travel speed
31.4 km/h
Back tyres
16.9-30
Front tyres
7.50-16
Transport length
3.69 m
Transport width
1.88 m
Model series
5
Engine manuf.
John Deere
Engine type
4045D
Engine power
60.4 kW
Displacement
4.5 l
Revolutions at max torque
2400 rpm
Max. torque
243 Nm
No. of cylinders
4
Cylinder bore x stroke
106 x 127 mm

More technical details, like: bridge length, bridge width, transport height, transmission, steering mode, attachment, dimension lxwxh, weight, emission level are available in the full technical specs.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
Yes
