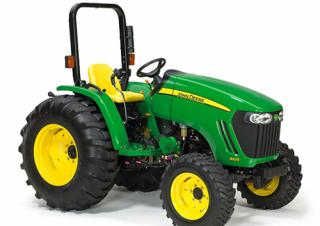

4105 John Deere 4105 Specifications & Technical Data (2008—2014)

Weight without attachment: 1.354t – Travel speed: 20.9km/h – Back tyres: 14.9-24 – Transport length: 3.05m – Transport width: 1.67m – Transport height: 1.45m

Vehicles Compact Utility Tractors John Deere 4105

Technical specs - 4105 John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
1.354 t
Travel speed
20.9 km/h
Back tyres
14.9-24
Transport length
3.05 m
Transport width
1.67 m
Transport height
1.45 m
Model series
4
Engine manuf.
Yanmar
Engine type
3TNV84T-KJT
Engine power
30.6 kW
Displacement
1.5 l
Revolutions at max torque
2800 rpm
Max. torque
124.5 Nm
No. of cylinders
3
Cylinder bore x stroke
84 x 90 mm

More technical details, like: bridge length, bridge width, front tyres, transmission, steering mode, attachment, dimension lxwxh, weight, emission level are available in the full technical specs.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
Yes
