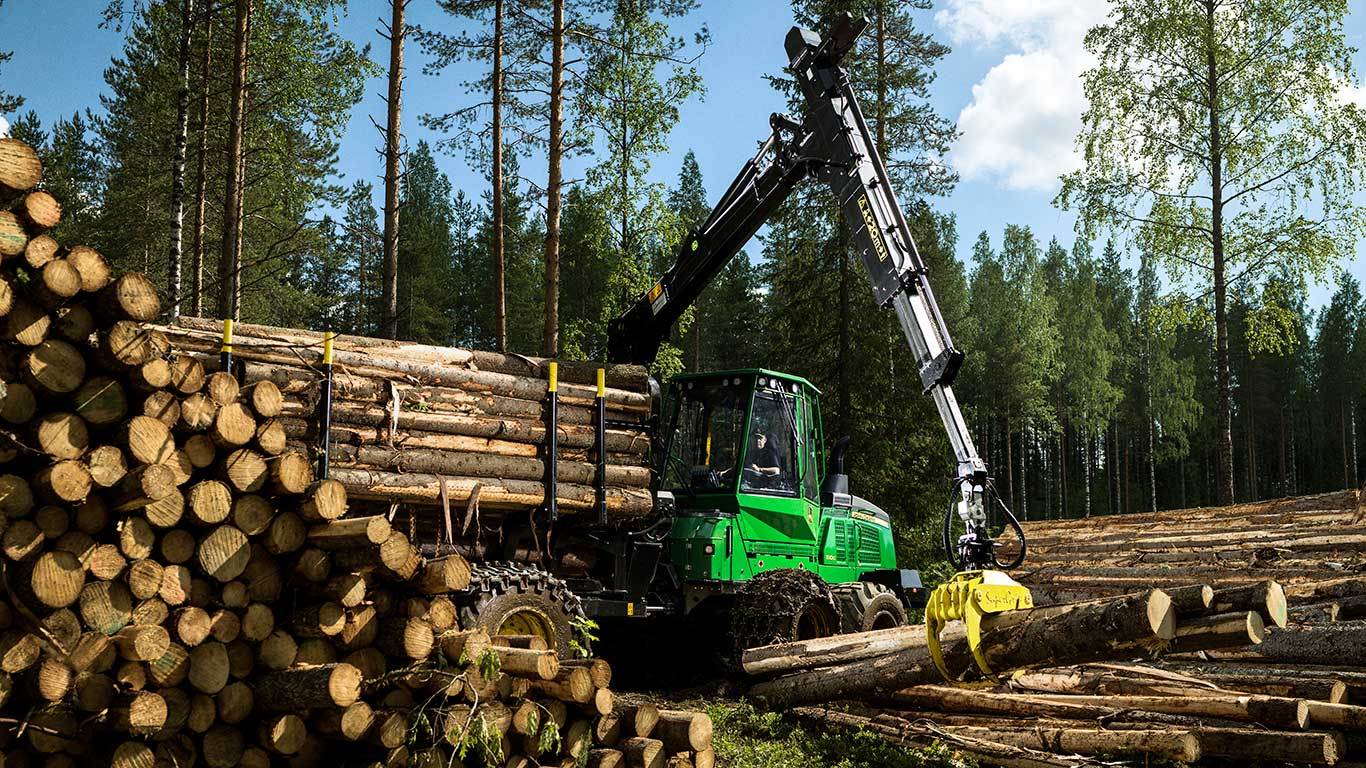

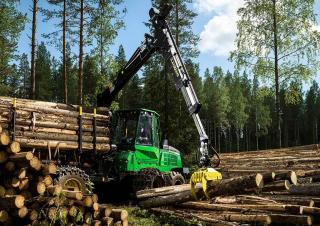

John Deere 1110 G Specifications & Technical Data (2017-2025)

Operating weight: 15.33t – Crane manufacturer: John Deere – Type of crane: CF5 or CF7 – Standard tyres: 600/710/800 – Boom Lifting Torque: 125kN – Net load: 12t

Technical specs - 1110 G John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Operating weight
15.33 t
Crane manufacturer
John Deere
Type of crane
CF5 or CF7
Standard tyres
600/710/800
Boom Lifting Torque
125 kN
Net load
12 t
Transmission type
HSM
No. of tyres
6
Transport length
10.82 m
Transport width
2.99 m
Transport height
3.87 m
Model series
G
Engine manuf.
John Deere
Engine type
6068HTJ
Engine power
145 kW
Displacement
6.8 l
Revolutions at max torque
1300-1600 rpm
Max. torque
865 Nm
No. of cylinders
6
Emission level
Stage V

More technical details, like: dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.

Basic model incl. crane and log grab

Special equipment

Track
Yes

Download datasheets (PDF)
