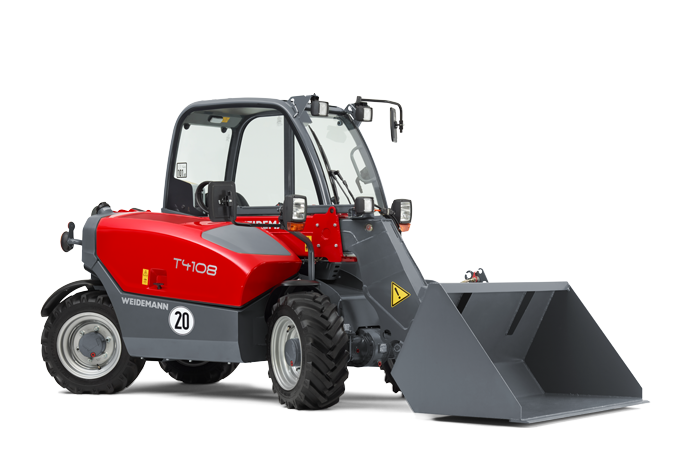

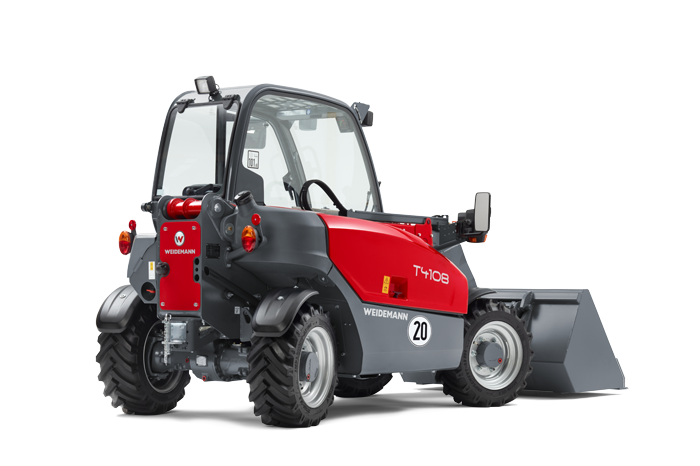

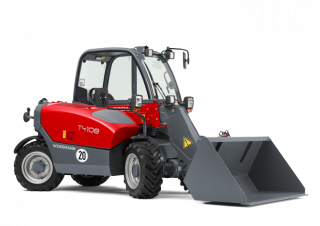

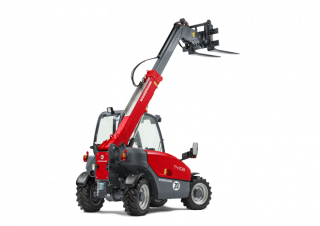

T4108 Weidemann - Technical specs

Nominal load at COG 0.8 t
Standard tyres 27x10.0-15 AS ET 20
Transmission type HY
Lifting height 4.15 m
Weight 2 t
Transport length 3 m
Transport width 1.413 m
Transport height 1 m
Travel speed 14 km/h
Engine manuf. Yanmar
Engine type 3TNV76
Engine power 19.2 kW
Engine power 26 HP
Displacement 1.116 l
Revolutions at max torque 3000 rpm
No. of cylinders 3
Emission level IIIA
Centre of gravity ###
Max. Reach horizontal ###
Capacity at full forward reach ###
Capacity at full lift hight ###
max. climbing ability ###
Dimension lxwxh ###
Max. torque ###
Cylinder bore x stroke ###
Weight ###

T4108 Weidemann - Special equipment

  • Diesel particulate filter
  • StVZO Equipment
  • Inclination correction
  • Side displacement
