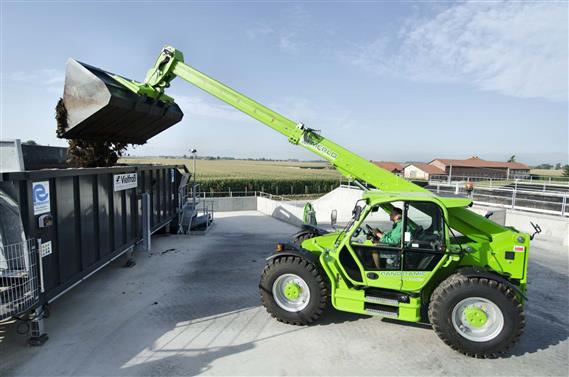

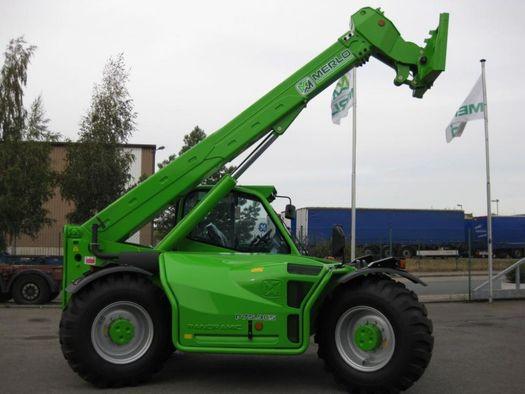

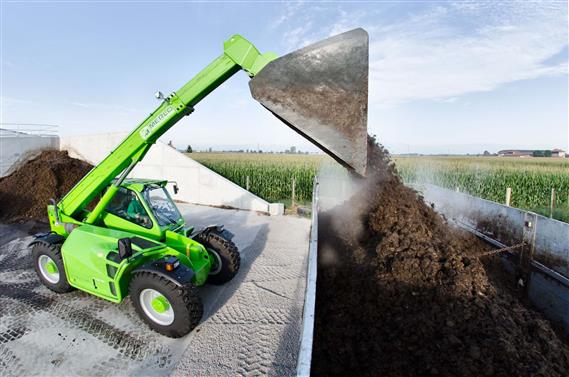

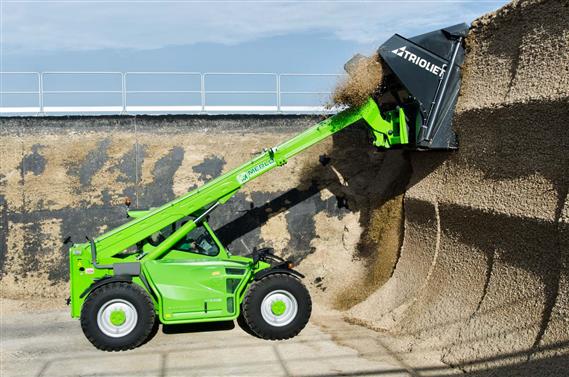

Panoramic P 75.9 CS Merlo Telehandler Specs & Dimensions (2009 - 2015)

Name: Merlo Panoramic P 75.9 CS Telehandlers
Brand: Merlo

The Merlo Panoramic P 75.9 CS is a telehandler manufactured by Merlo from 2009 to 2015. It weighs 11.4 tons and has a transport le…

The Merlo Panoramic P 75.9 CS is a telehandler manufactured by Merlo from 2009 to 2015. It weighs 11.4 tons and has a transport length of 5.1 meters. The telehandler has a nominal load at the center of gravity of 7.5 tons and a lifting height of 8.6 meters. It has a capacity of 2.5 tons at full forward reach and a center of gravity at 600 millimeters. The travel speed of the telehandler is 40 km/h. It has a capacity of 6.5 tons at full lift height. The transport width is 2.4 meters and the transport height is 2.54 meters.

Panoramic P 75.9 CS

Years of manufacture: 2009—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Panoramic P 75.9 CS Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 7.5 t

Model series: Panasonic

Centre of gravity: 600 mm

Standard tyres: 17.5-25 22PR

Max. Reach horizontal: 4.6 m

Capacity at full forward reach: 2.5 t

Lifting height: 8.6 m

Capacity at full lift height: 6.5 t

Weight: 11.4 t

Transport length: 5.1 m

Transport width: 2.4 m

Transport height: 2.54 m

Travel speed: 40 km/h

Engine manuf.: Deutz

Engine type: BFD4M2012C

Engine power: 103 kW

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
