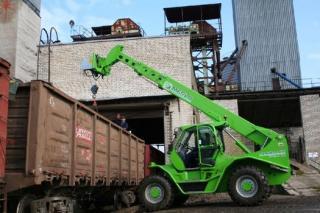

Panoramic P 65.14 HM Merlo Telehandler Specs & Dimensions (2007 - 2015)

Name: Merlo Panoramic P 65.14 HM Telehandlers
Brand: Merlo

The Merlo Panoramic P 65.14 HM is a telehandler manufactured by Merlo from 2007 to 2015. It has a weight of 15.5 tons and a transp…

The Merlo Panoramic P 65.14 HM is a telehandler manufactured by Merlo from 2007 to 2015. It has a weight of 15.5 tons and a transport length of 5.91 meters. With a maximum horizontal reach of 9 meters, it can lift loads up to 6.5 tons at the center of gravity. The lifting height of this telehandler is 13.9 meters, and it has a capacity of 1.6 tons at full forward reach. The center of gravity is located at 600 millimeters. At full lift height, it can handle loads up to 4 tons. The transport width is 2.4 meters, and the transport height is 2.85 meters. This telehandler is equipped with special features such as inclination correction and side displacement.

Panoramic P 65.14 HM

Years of manufacture: 2007—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Panoramic P 65.14 HM Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 6.5 t

Model series: Panasonic

Centre of gravity: 600 mm

Standard tyres: 17.5/25-22PP

Max. Reach horizontal: 9 m

Capacity at full forward reach: 1.6 t

Lifting height: 13.9 m

Capacity at full lift height: 4 t

Weight: 15.5 t

Transport length: 5.91 m

Transport width: 2.4 m

Transport height: 2.85 m

Engine manuf.: Iveco

Engine type: NEF N67MNT

Engine power: 107 kW

More technical details, like: transmission type, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: Yes
Side displacement: Yes
