Panoramic P 60.10 Merlo Telehandler Specs & Dimensions (2016 - 2019)

Name: Merlo Panoramic P 60.10 Telehandlers
Brand: Merlo

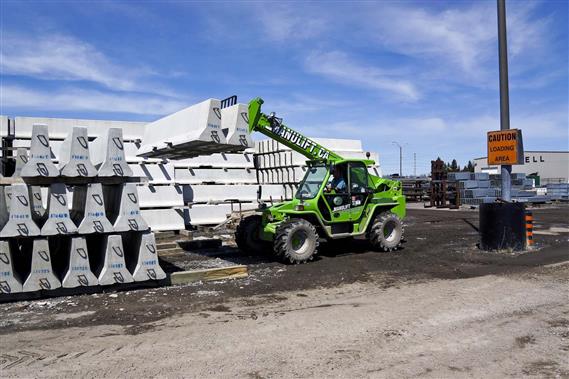

The Merlo Panoramic P 60.10 is a telehandler manufactured by Merlo from 2016 to 2019. It has a weight of 9.72 tons and a transport…

The Merlo Panoramic P 60.10 is a telehandler manufactured by Merlo from 2016 to 2019. It has a weight of 9.72 tons and a transport length of 5.345 meters. The telehandler has a nominal load at the center of gravity of 6 tons and a lifting height of 9.55 meters. It has a capacity of 1.5 tons at full forward reach and a center of gravity at 600 millimeters. The travel speed of the telehandler is 40 km/h and it has a maximum climbing ability of 45 percent. The capacity at full lift height is 3 tons. The transport width is 2.33 meters and the transport height is 2.44 meters. The special equipment includes inclination correction, side displacement, and StVZO equipment.

Panoramic P 60.10

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Panoramic P 60.10 Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 6 t

Model series: Panasonic

Centre of gravity: 600 mm

Standard tyres: 18 - 19.5 MPT 06 16 PR

Transmission type: HY

Max. Reach horizontal: 5.3 m

Capacity at full forward reach: 1.5 t

Lifting height: 9.55 m

Capacity at full lift height: 3 t

Weight: 9.72 t

Transport length: 5.345 m

Transport width: 2.33 m

Transport height: 2.44 m

Travel speed: 40 km/h

max. climbing ability: 45 %

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 75 kW

Displacement: 3.6 l

No. of cylinders: 4

Emission level: IV Final

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: Yes
Inclination correction: Yes
Side displacement: Yes

Download datasheets (PDF)

Merlo Panoramic P 60.10 overview

Drive

Quick-attach carriage

The Tac-Lock quick attachment fitting system is hydraulically controlled from the cab. Standard double-acting hydraulic service, with quick couplings, for the operation of hydraulically powered attachments.

Steering

Four drive/steer wheels, with automatic wheel synchronisation in the event of any misalignment and selection of three steering modes from the cab.

Transmission

Hydrostatic with electronically controlled variable displacement pump. Continuous and automatic speed variation, from zero to maximum speed, solely with the accelerator pedal. Two-speed mechanical range gearbox. Inching-Control pedal to proportionately reduce travel speed whilst maintaining high engine speed for hydraulic operation e.g. during loading operations. Finger-Touch system makes it possible to change between forward and reverse direction with the driver keeping both hands firmly on the steering wheel. Permanent four-wheel drive. Portal axles ensuring excellent ground clearance.

Braking system

Disc service brakes on all 4 wheels, hydraulically operated and acting on the differential output shafts. Disc parking brake with automatic locking feature and hydraulic release control, acting on the main transmission shaft.

Electrics

12V system with 100Ah battery and 90A alternator. Full road lighting and rotating beacon. Manual battery isolator switch (optional automatic switch).

Available options

Rear axle differential lock. Automatic battery isolator. Manual control air conditioning. Windscreen wiper on the roof window. Four working lights on the cab (two front lights and two rear). Pneumatic seat. BSS boom suspension system. Roof and front window mounted sun blinds.

Handling

Boom

Telescopic, with sections sliding on adjustable low-friction pads. Hydraulic extension mechanism, hydraulic pipes and electrics are totally enclosed within the boom assembly to ensure maximum protection and reliability. Integral boom side-shift mechanism.

Boom side-shift - a Merlo exclusive

The integral chassis side-shift mechanism gently swings the upper part of the chassis and, with it, the telescopic boom across the longitudinal axis of the machine. The load can be precisely placed without repositioning the machine. Using the side-shift mechanism in no way detracts from the performance or stability of the Panoramic as it is an integral part of the design, not a mere attachment, and produces the following maximum sideways displacement.
