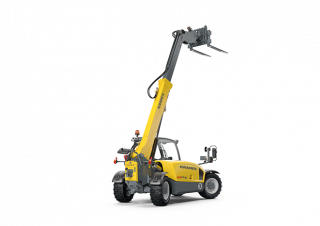

2205 Kramer Telehandler Specs & Dimensions (2015 - 2021)

Name: Kramer 2205 Telehandlers
Brand: Kramer

The Kramer 2205 is a telehandler manufactured by Kramer from 2015 to 2021. It has a weight of 4.2 tons and a transport length of 3…

The Kramer 2205 is a telehandler manufactured by Kramer from 2015 to 2021. It has a weight of 4.2 tons and a transport length of 3.747 meters. The nominal load at the center of gravity is 2.2 tons, and it has a lifting height of 5.189 meters. The center of gravity is located at 500 millimeters. It has a travel speed of 20 km/h and a transport width of 1.808 meters. The transport height is 1.95 meters.

2205

Years of manufacture: 2015—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2205 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2.2 t

Centre of gravity: 500 mm

Standard tyres: 10.5/80-18 AS ET0

Transmission type: HY

Lifting height: 5.189 m

Weight: 4.2 t

Transport length: 3.747 m

Transport width: 1.808 m

Transport height: 1.95 m

Travel speed: 20 km/h

Engine manuf.: Perkins

Engine type: 404D-22

Engine power: 36.3 kW

Displacement: 2.2 l

Revolutions at max torque: 2800 rpm

No. of cylinders: 4

Emission level: IIIA

More technical details, like: model series, max. reach horizontal, capacity at full forward reach, capacity at full lift height, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, dimension configuration, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

2205 Kramer Specification for Europe (DE)
