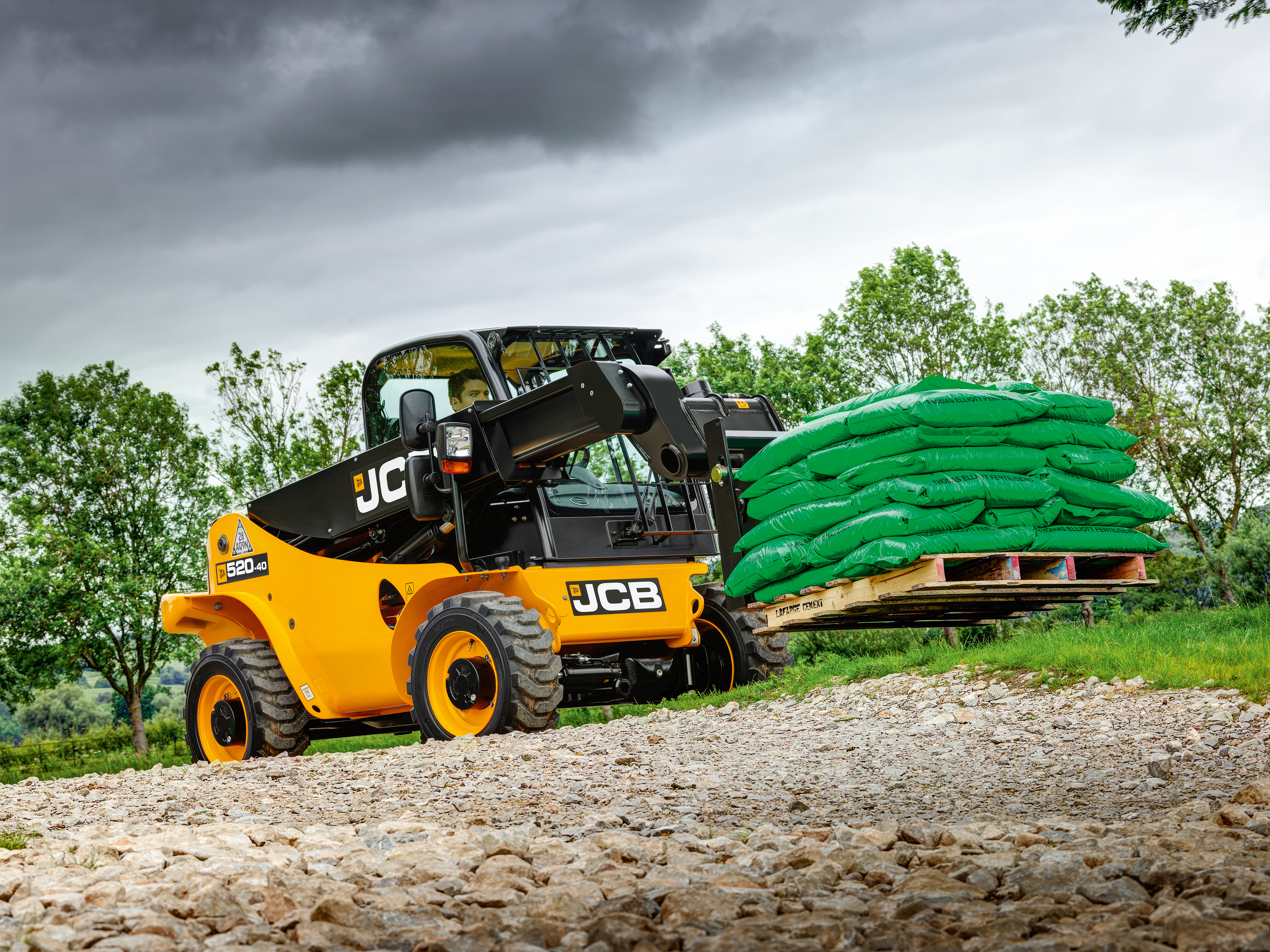

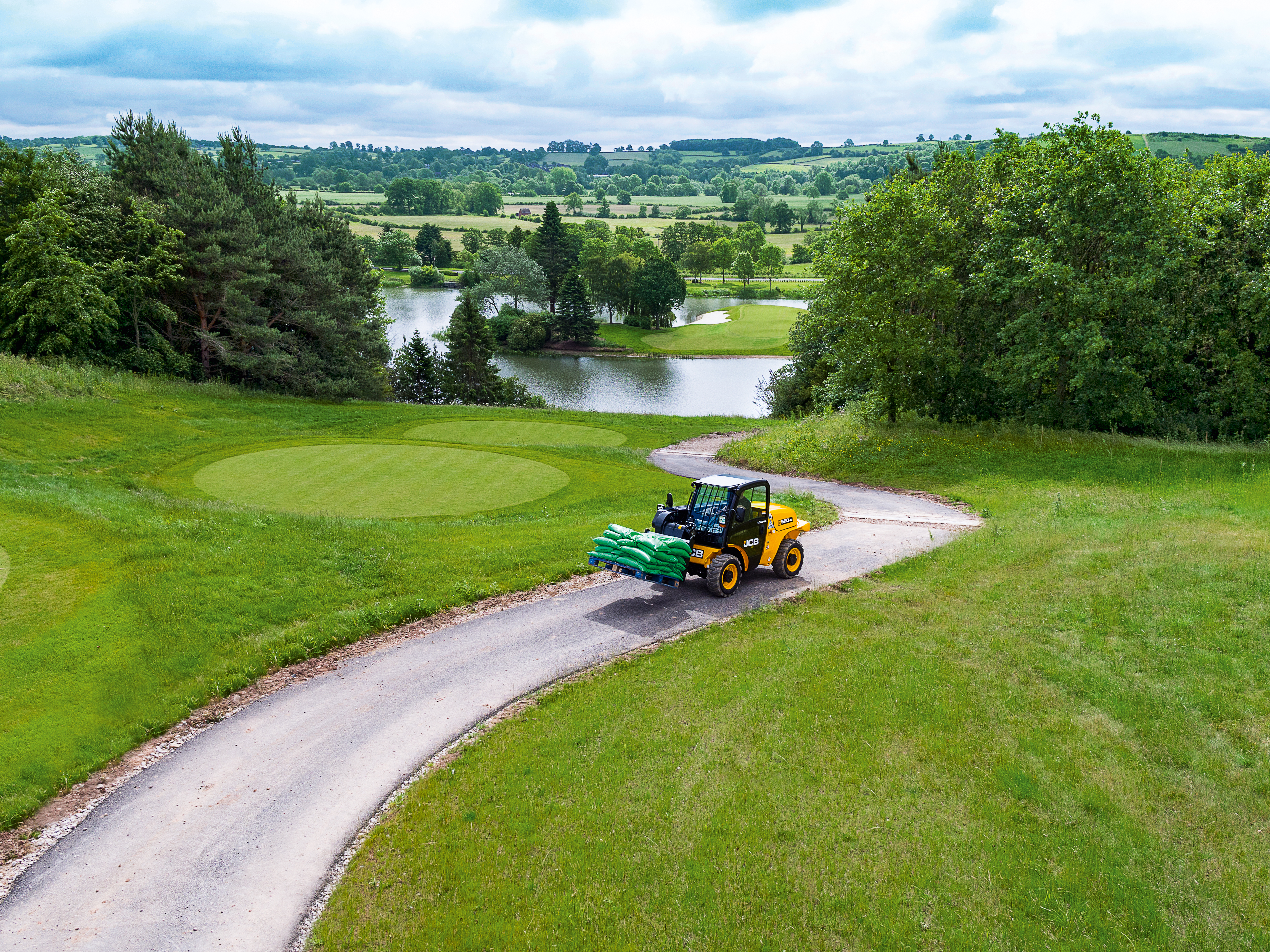

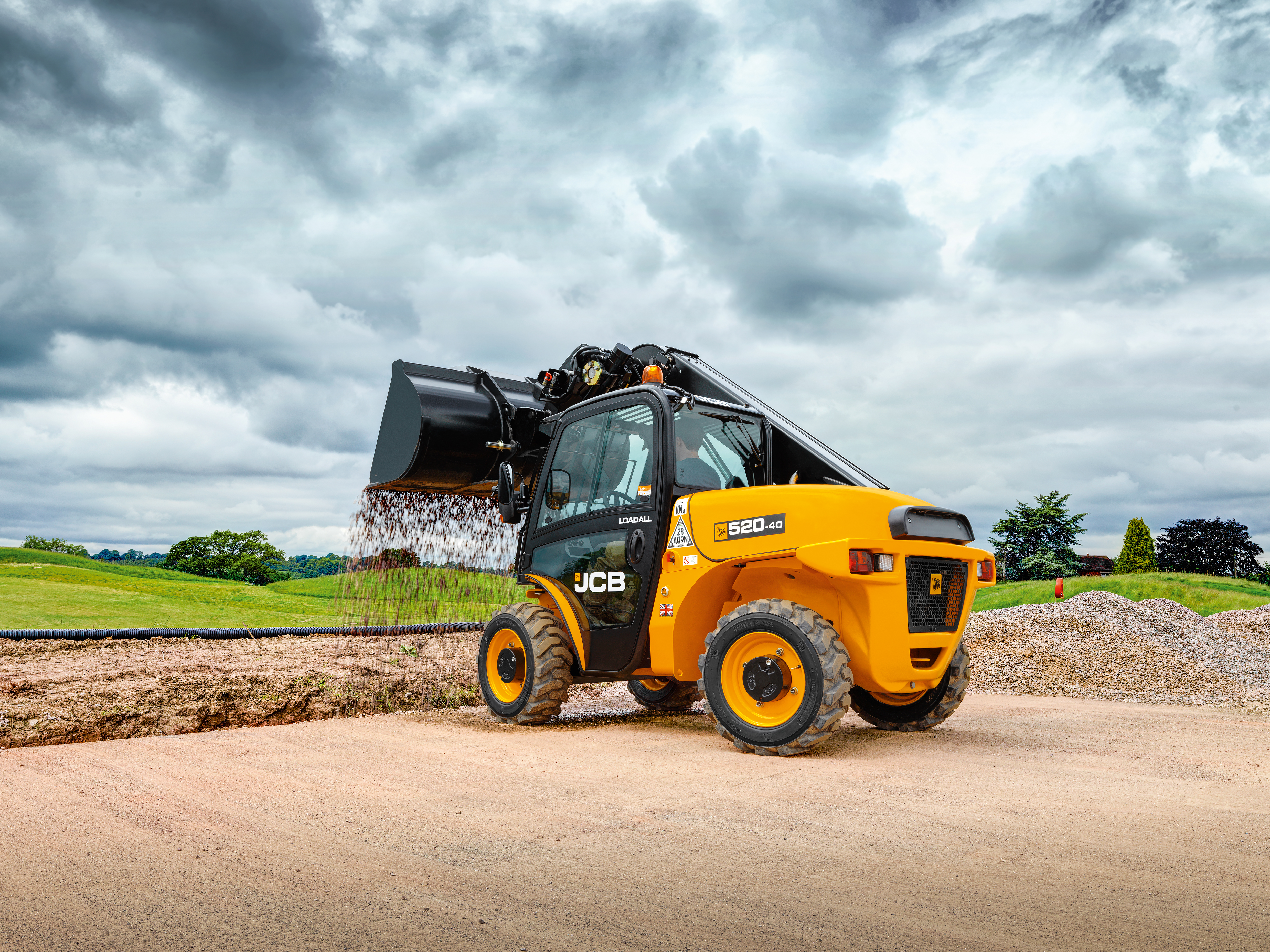

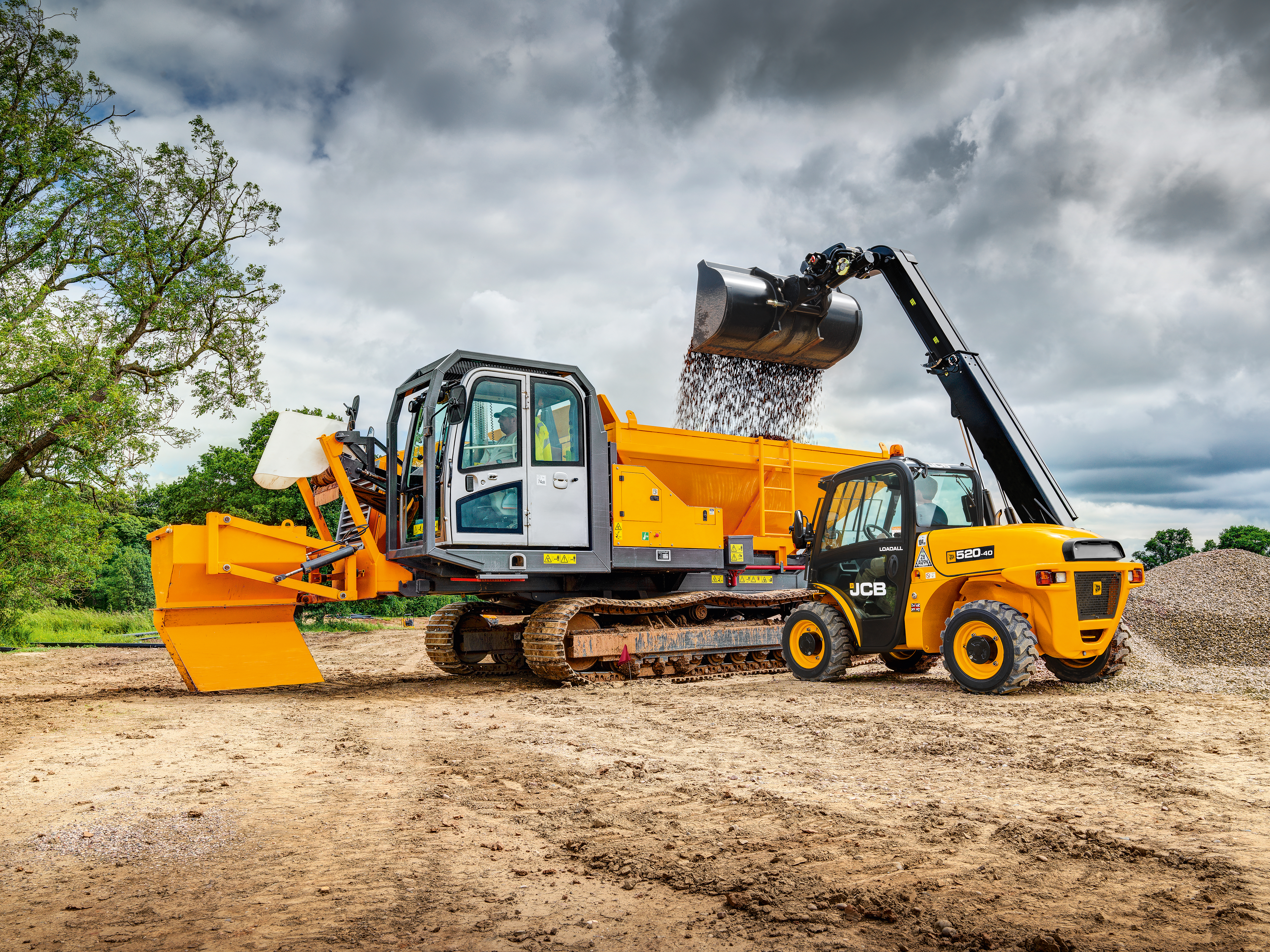

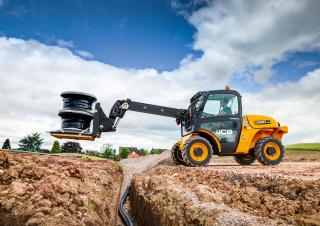

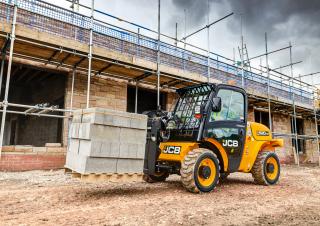

520-40 JCB Telehandler Specs & Dimensions (2021 - 2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit JCB live at
Technical specs - 520-40 JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2 t
- Model series
- 520
- Centre of gravity
- 500 mm
- Standard tyres
- 10x16-5
- Transmission type
- HY
- Max. Reach horizontal
- 2.59 m
- Capacity at full forward reach
- 1 t
- Lifting height
- 4.035 m
- Capacity at full lift height
- 2 t
- Weight
- 4.4 t
- Transport length
- 3.38 m
- Transport width
- 1.56 m
- Transport height
- 1.97 m
- Travel speed
- 15 km/h
- Engine manuf.
- Perkins
- Engine type
- 403J-17
- Engine power
- 19 kW
- Displacement
- 1.7 l
- Max. torque
- 98/1400 Nm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel
Special equipment
- Diesel particulate filter
-
No
- StVZO Equipment
-
No
- Inclination correction
-
No
- Side displacement
-
No
