Samson 50.8 VS EVO2 GD Dieci Telehandler Specs & Dimensions (2022 - 2026)

The Dieci Samson 50.8 VS EVO2 GD is a telehandler manufactured since 2022. It has a weight of 10.6 tons and a transport length of …

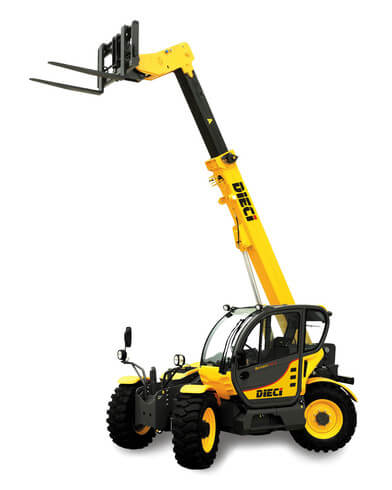

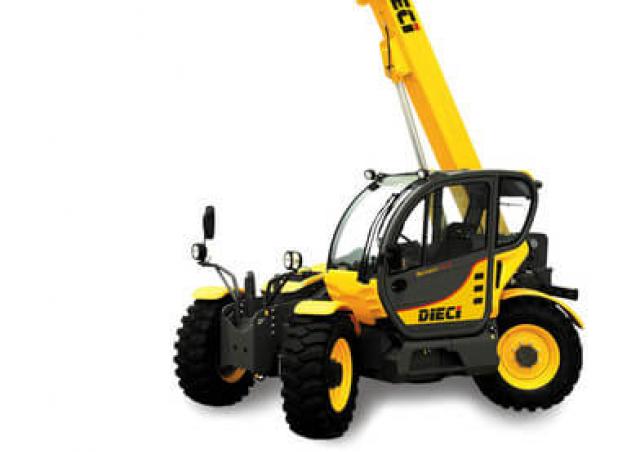

The Dieci Samson 50.8 VS EVO2 GD is a telehandler manufactured since 2022. It has a weight of 10.6 tons and a transport length of 5.023 meters. With a maximum horizontal reach of 4.2 meters, it can lift loads up to 5 tons at the nominal load center of gravity of 500mm. The lifting height of this telehandler is 7.7 meters, and it has a capacity of 1.75 tons at full forward reach. It can travel at a speed of 40 km/h and has a maximum climbing ability of 40 percent. The capacity at full lift height is 3.1 tons. The transport width is 2.375 meters, and the transport height is 2.8 meters. The hoisting speed with or without load is 8.7 m/s, while the lowering speed with load is 6.9 m/s.

Telehandlers Dieci Samson 50.8 VS EVO2 GD

Technical specs - Samson 50.8 VS EVO2 GD Dieci

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
5 t
Model series
Samson
Centre of gravity
500 mm
Standard tyres
18x22.5
Transmission type
W
Max. Reach horizontal
4.2 m
Capacity at full forward reach
1.75 t
Lifting height
7.7 m
Capacity at full lift height
3.1 t
Weight
10.6 t
Transport length
5.023 m
Transport width
2.375 m
Transport height
2.8 m
Travel speed
40 km/h
max. climbing ability
40 %
Hoisting with / without load
8.7 m/s
Lowering with load
6.9 m/s
Engine manuf.
FPT
Engine type
NEF N45
Engine power
125 kW
Displacement
4.485 l
Revolutions at max torque
2200 rpm
Max. torque
710 Nm
No. of cylinders
4
Emission level
V

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
