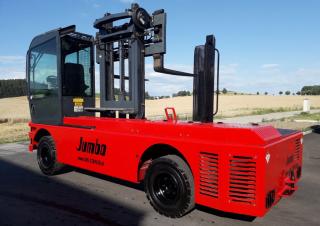

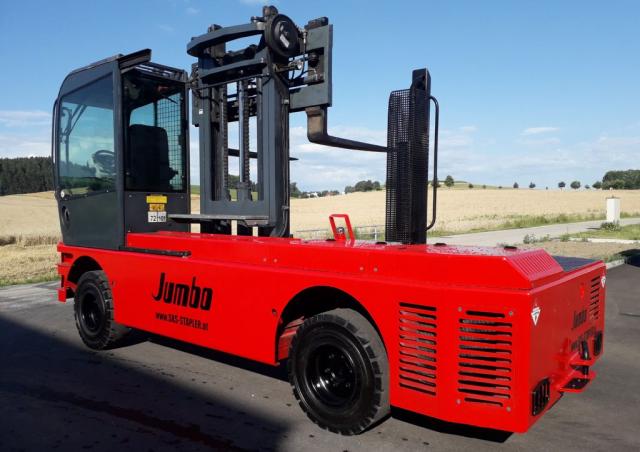

Jumbo JDQ 50/14 Diesel Side Loader Forklift Specs & Dimensions (2003 - 2015)
Technical specs - JDQ 50/14 Jumbo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 5 t
- Centre of gravity
- 700 mm
- Standard tyres
- L
- Transmission type
- HY
- Weight
- 8.45 t
- Total width
- 2200 mm
- Construction height
- 2885 mm
- Model series
- JDQ
- Engine manuf.
- Perkins
- Engine type
- 1104D-44T
- Engine power
- 62.5 kW
More technical details, like: lifting height, hoisting with / without load, lowering with load, travel speed with / without load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
Special equipment
- Hydr. brace support
-
No
Download datasheets (PDF)
Buy & Rent
Used Jumbo Diesel Sideloaders for sale
We obtain current offers from many sources about Diesel Sideloaders.
Compare the selection of the best offers on liked classified websites presenting second hand Diesel Sideloaders for sale in many countries.
Get in touch for more details:
Compare Jumbo JDQ 50/14 with similar Diesel Sideloaders
Hubtex DQ 45-D
- Nominal load at COG:
- 4.5 t
- Centre of gravity:
- 700 mm
- Transmission type:
- HY
Combi-Lift C 5000 SL
- Nominal load at COG:
- 5 t
- Centre of gravity:
- 600 mm
- Standard tyres:
- 28X12.5-15
- Transmission type:
- HY
Lancer LQ 40
- Nominal load at COG:
- 4 t
- Centre of gravity:
- 700 mm
- Standard tyres:
- L
- Transmission type:
- HY
Jumbo J/SL 40
- Nominal load at COG:
- 4 t
- Centre of gravity:
- 500 mm
- Standard tyres:
- x2/2
- Transmission type:
- W
Sell Jumbo JDQ 50/14
Diesel Sideloaders appraisal with LECTURA Valuation
Whether you need to get value of your Jumbo JDQ 50/14 or valuation of your Diesel Sideloaders fleet, LECTURA Valuation will help. Simply fill the equipment details and see the pricing information for Diesel Sideloaders in few clicks.
Data provided by
Spare parts & Components
Get spare parts for Jumbo JDQ 50/14 easily from our partners
Do your lookup for high quality parts for Jumbo JDQ 50/14 online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Diesel Sideloaders spare parts easily today - worldwide.
Transport
Diesel Sideloaders Transport & Shipping Services
In case you look into transport options for your machine, take advantage of our services. Ask for the most appropriate transport quotes for Diesel Sideloaders created on dimensions and weight. Our partners provide major options to satisfy your requirements.
Data provided by
Events & News
Material Handling News by LECTURA 17.07.2025
.JPG)

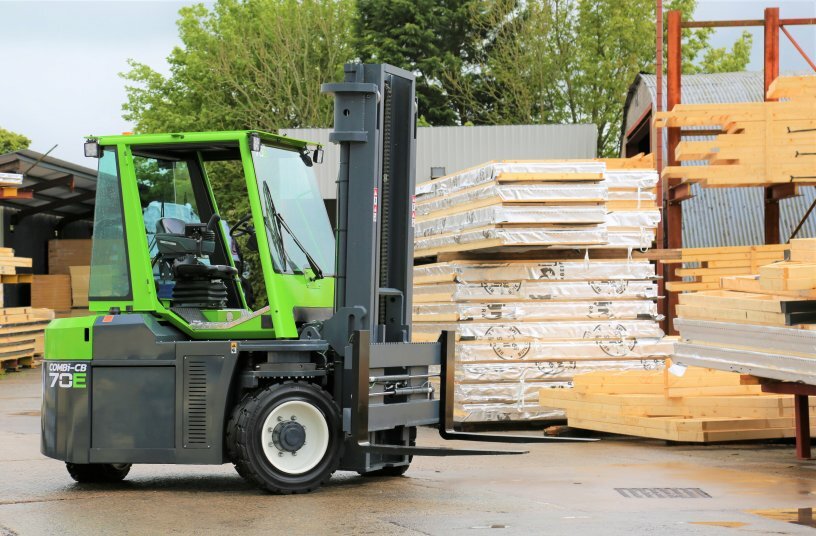

Combilift Receives its 3rd Red Dot Win with its New 7-ton Electric Multidirectional Counterbalance Forklift
