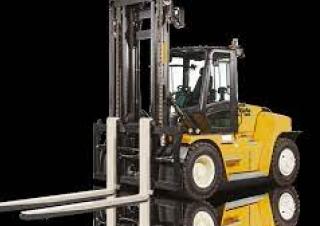

Technical specs - GP190DC Yale
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
| Nominal load at COG | 8.618 t |
|---|---|
| Standard tyres | 4x/2 |
| Weight | 12.762 t |
| Lifting height | 3.75 m |
| Travel speed with / without load | 30/31 km/h |
| Hoisting with / without load | 0,45/0,45 m/s |
| Lowering with load | 0,50/0,48 m/s |
| max. climbing ability | 33 % |
| Engine manuf. | Cummins |
| Engine type | QSB 4.5 |
| Engine power | 119 kW |
| Engine power | 160 HP |
| Displacement | 4.5 l |
| Revolutions at max torque | 1500 rpm |
| Max. torque | 624 Nm |
| No. of cylinders | 4 |
| Emission level | Stage IV |
| Centre of gravity | ### |
| Transmission type | ### |
| Total width | ### |
| Construction height | ### |
| Dimension lxwxh | ### |
| Cylinder bore x stroke | ### |
| Weight | ### |
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
GP190DC Yale - Special equipment
- StVZO Equipment
RAVAS iForks-32 weight scaling solution for your Yale GP190DC
Successful RAVAS scale forks
Fit iForks for your Yale GP190DC and realise immediate cost savings
Functions:
Gross/net weighing
Totalling with sequence number
Weight data transfer to smart phone, tablet, handheld and WMS/ERP system
Benefits:
Installation within 5 minutes
Completely wireless with digital calibration
-
