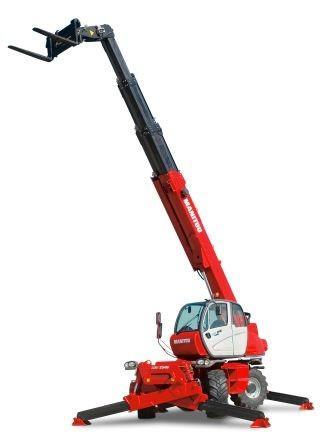

MRT 2540 Privilege Manitou Rotating Telehandler Specs & Dimensions (2007 - 2016)

Electric circuit protection

Work for longer in all weathers. The entire electrical installation and all components (printed circuit boards, fuse boxes and connections) are rated IP67, ensuring that they are dust free and watertight.

Total safety on wheels

The MRT Privilege is equipped with an automatic oscillating rear axle lock-out device. When the machine is standing on its wheels, if the turret is slewed by more than 7.5°, rear axle oscillation is locked out. You can work in total safety and retain maximum capacity.

Hydrostatic transmission

The hydrostatic transmission coupled to a two speed gearbox allows you to adapt your speed and tractive force. This system offers precise gradual operation for load placement. Handling is smooth. Power is transmitted to the wheels via heavy duty steering axles, equipped with epicyclic gears.

Safe, reliable braking

Stop your machine precisely in all circumstances with the oil-bath multiple-disc brakes integrated into the axles. The braking capacity is balanced between the four wheels for maximum efficiency. A negative action hydraulic parking brake is also incorporated and stops the machine under all circumstances.

Ecological mode

This standard item allows you to reduce significantly the consumption of fuel during movements: the engine system adapts itself automatically to the needs of the transmission system.

Simplified access to the principal components

Maintain your machine with ease. The engine positioned to the side of the chassis allows easy access from three sides. The air filter and battery are accessible through a hood at the rear of the chassis.

x 1 telehandler

The MRT Privilege has impressive lifting height and reach capabilities through 360°. Its telescopic boom is ideally suited for precise control and efficient unloading and distribution. A maximum number of operations can be completed in minimum time from a fixed point. You control your productivity.

x 3 platform

Extend your elevating capabilities with the MRT Privilege: reach working heights in excess of 40 m. A choice of work platform, swing arm or 3D system offers increased flexibility in total safety.

Recognition of accessories

The MRT Privilege is fitted, as standard, with a recognition system which identifies and analyses the accessory tool fitted, and assigns the appropriate work envelope. Technology gives simplicity.

Intuitive handling

The MRT Privilege is simple to drive and control. You manipulate your load with precision thanks to the two electro-hydraulic joysticks fitted to the armrests. The joysticks are always within reach regardless of seat position.

Boom accuracy

Precision movements for perfect control of your handling operations. The pentagonal cross-section makes the telescopic boom more rigid and ensures that the components are guided perfectly. Lateral oscillation is considerably reduced.

Levelling system

Tackle rough or sloping terrain with ease. Simply push a lever to keep your load horizontal. The state of the terrain is no longer a concern.

Control of the state of load

The MRT Privilege is fitted with the Manitou Safety System. It analyses continuously the position of your load within the working envelope, and the machine’s work configuration. The system restricts the working area according to the accessory and the load being handled. You can be sure that there is no risk of overload on your machine or its accessory.

x 2 crane

The MRT Privilege is an all-terrain machine that combines practicality and performance. It is built to move and lift bulky and heavy loads. Regardless of whether the machine has stabilizers deployed or not, you can work in total safety on all terrain.

Machine operation made easier

You can operate your MRT Privilege in complete confidence. Each joystick is equipped with a positive action position. All risk of involuntary movement is eliminated. The forward and reverse control is integrated with the right-hand joystick: your hands do not leave the wheel.

Quick to position

Deploy the stabilizers simultaneously or individually at the simple flick of a switch in the cab. To reposition the machine on the site, simply raise the scissor system and move. Increased efficiency.

Modular stabilization surface

The stabilizers have a telescopic scissor design enabling the legs to be just partly deployed when obstacles are present or there is a lack of space. The machine’s capacities are automatically adjusted in this configuration.

Optimum support

Enjoy excellent stability on all terrain. The scissor stabilizers form a square when fully deployed. This guarantees uniform stability irrespective of turret position. The pads have a large bearing surface - no need for additional chocks. You save a considerable amount of time.

Compact arrangement

Lift your stabilizers in total confidence. When the pads are retracted, they are automatically integrated into the machine’s body. No loss of ground clearance. The cylinders are fully protected.

Forward visibility

The contoured design of the windscreen provides a panoramic view through the upper part of the cab. Front, rear, and roof wipers are fitted as standard for optimum visibility in wet weather.

Optimized boom design

The use of high-strength alloy steel makes the boom both light and solid. Irrespective of whether they are hydraulically or chain-operated, the booms are designed to facilitate and minimize maintenance.

Cab ergonomics

The spacious MRT Privilege cab offers a comfortable control position with features such as a self-cleaning step, wide door for easier access, clear comprehensive dashboard and electric windows. There is plenty of room for personal belongings, documents, in the many large compartments provided in the cab. The cab can be adapted to your needs thanks to the adjustable height and angle of the steering wheel and adjustable, height and depth of the seat. The tilting seat guarantees a clear view of the load without sacrificing comfort.

Dual-energy system

The MRT Privilege can be optionally equipped with a dual-energy system. By adopting this solution, all operations previously limited by pollution and noise emissions from the diesel engine can now be performed, even inside buildings. To take advantage of the dual-energy system, the machine must firstly be stabilized and coupled up to an external electrical supply source. The operator can then perform all handling operations from the cab or with the radio-control. Additionally, the operator can benefit from the dual-energy mode from the platform basket.
