MRT 2145 Manitou Rotating Telehandler Specs & Dimensions (2017 - 2019)

Nominal load at COG: 4.5t – Centre of gravity: 500mm – Standard tyres: 18-19.5 MPT 03 TL – Transmission type: HY – Lifting height:…

Nominal load at COG: 4.5t – Centre of gravity: 500mm – Standard tyres: 18-19.5 MPT 03 TL – Transmission type: HY – Lifting height: 20.6m – Weight: 14.53t

Rotating telehandler MRT 2145 manufactured by Manitou, production years (2017 - 2019). Explore detailed MRT 2145 360 degree telehandler specs: technical details, table charts and data sheets to download. Check also the other rotating telescopic forklift models produced by Manitou.

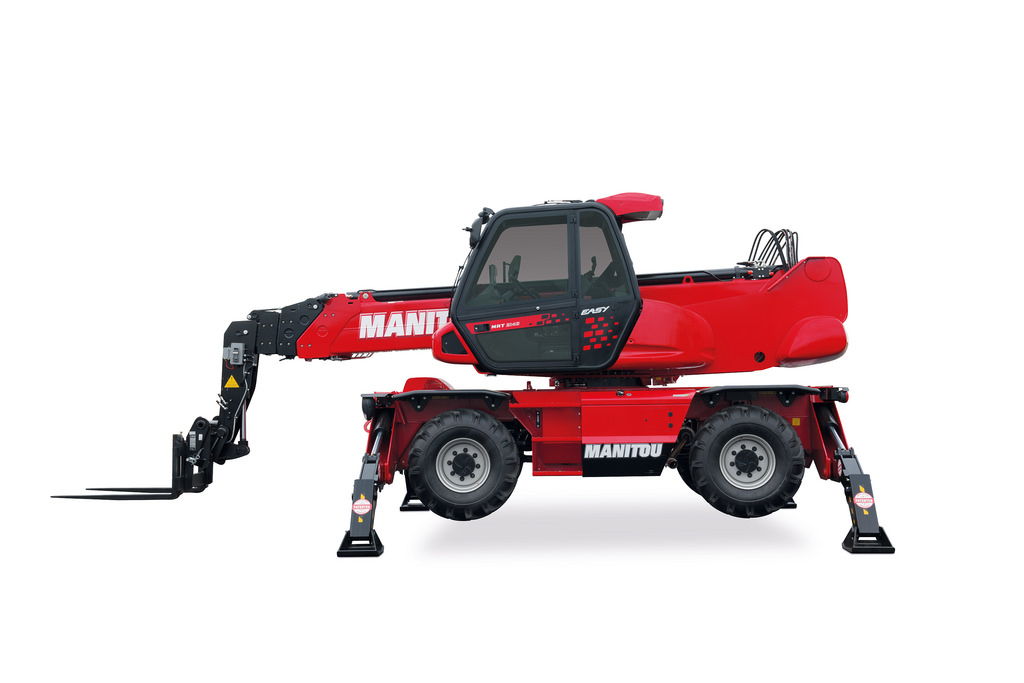

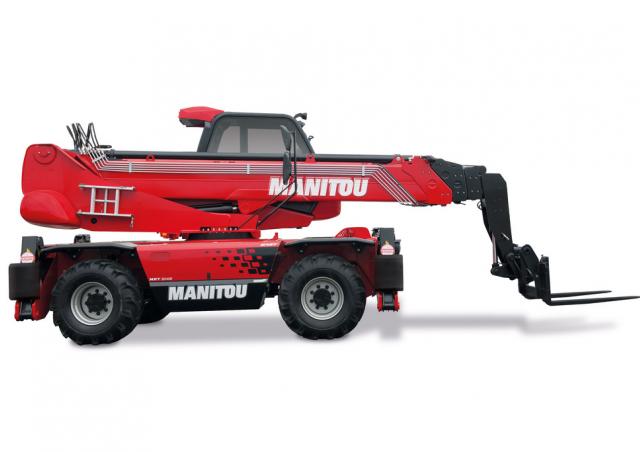

Rotating telehandlers Manitou MRT 2145
Rotating telehandlers Manitou MRT 2145
Rotating telehandlers Manitou MRT 2145
Rotating telehandlers Manitou MRT 2145

Visit Manitou live at

Technical specs - MRT 2145 Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4.5 t
Centre of gravity
500 mm
Standard tyres
18-19.5 MPT 03 TL
Transmission type
HY
Lifting height
20.6 m
Weight
14.53 t
Transport length
6.59 m
Transport width
2.5 m
Transport height
3.02 m
Travel speed
37 km/h
Model series
MRT
Engine manuf.
Perkins
Engine type
854F-E34TA
Engine power
75 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
420 Nm
No. of cylinders
4
Emission level
Tier 4

More technical details, like: max. reach horizontal, capacity at full forward reach, capacity at full lift height, max. climbing ability, dimension lxwxh, cylinder bore x stroke, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer...

More technical details, like: max. reach horizontal, capacity at full forward reach, capacity at full lift height, max. climbing ability, dimension lxwxh, cylinder bore x stroke, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, engine output - gross, steering type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, lift height - maximum, lift height - with maximum capacity, reach - maximum, reach - ground with maximum capacity, carriage rotation angle, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
limited pivotable
No
endless rotation
No

Download datasheets (PDF)
