TR 35160 Bobcat Rotating Telehandler Specs & Dimensions (2010 - 2013)

Nominal load at COG: 3.5t – Centre of gravity: 600mm – Standard tyres: 18-R22.5 – Transmission type: HY – Max. Reach horizontal: 1…

Nominal load at COG: 3.5t – Centre of gravity: 600mm – Standard tyres: 18-R22.5 – Transmission type: HY – Max. Reach horizontal: 13.35m – Capacity at full forward reach: 0.3t

Rotating telehandler TR 35160 manufactured by Bobcat, production years (2010 - 2013). Explore detailed TR 35160 360 degree telehandler specs: technical details, table charts and data sheets to download. Check also the other rotating telescopic forklift models produced by Bobcat.

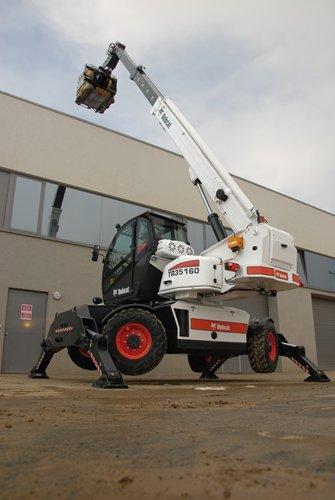

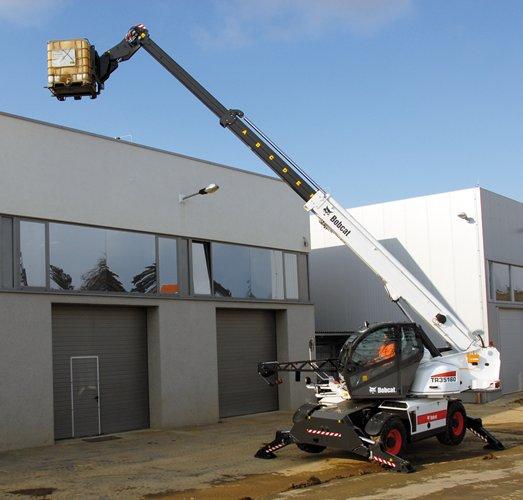

Rotating telehandlers Bobcat TR 35160
Rotating telehandlers Bobcat TR 35160
Rotating telehandlers Bobcat TR 35160
Rotating telehandlers Bobcat TR 35160

Visit Bobcat live at

Technical specs - TR 35160 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.5 t
Centre of gravity
600 mm
Standard tyres
18-R22.5
Transmission type
HY
Max. Reach horizontal
13.35 m
Capacity at full forward reach
0.3 t
Lifting height
15.7 m
Capacity at full lift height
2 t
Weight
13.1 t
Transport length
6.35 m
Transport width
2.38 m
Transport height
3 m
Travel speed
24 km/h
Engine manuf.
Iveco
Engine type
NEF F4GE
Engine power
74 kW

More technical details, like: max. climbing ability, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis...

More technical details, like: max. climbing ability, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, engine output - net, steering type, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, lift height - maximum, lift height - with maximum capacity, reach - maximum, reach - ground with maximum capacity, carriage rotation angle, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, turning radius - over forks, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
limited pivotable
No
endless rotation
No

Download datasheets (PDF)
