ML14ASX Linde Reach Truck Specs & Dimensions (2022 - 2026)

Nominal load at COG: 1.36t – Total width: 850mm – Construction height: 2108mm – Standard tyres: Drive: 10x4 / Load: 2x4x2.75 – Cen…

Nominal load at COG: 1.36t – Total width: 850mm – Construction height: 2108mm – Standard tyres: Drive: 10x4 / Load: 2x4x2.75 – Centre of gravity: 610mm – Voltage: 24V

Reach truck ML14ASX manufactured by Linde, production years (2022 - 2026). Explore detailed ML14ASX reach forklift specs: technical details, table charts and data sheets to download. Check also the other models produced by Linde.

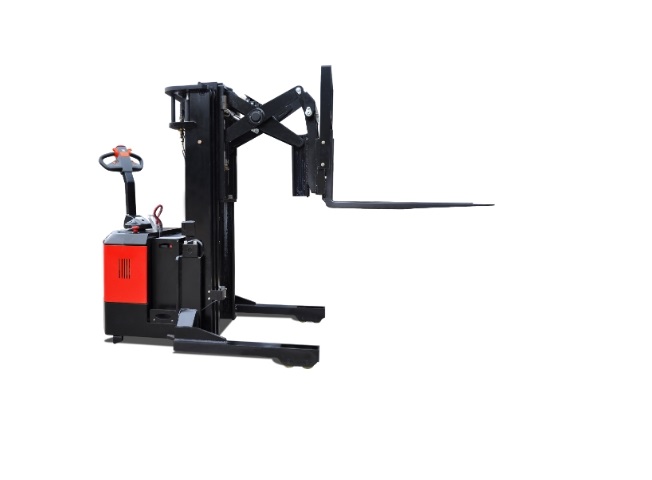

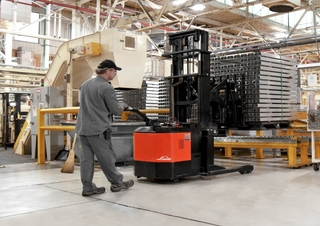

Reach Trucks Linde ML14ASX
Reach Trucks Linde ML14ASX
Reach Trucks Linde ML14ASX
Reach Trucks Linde ML14ASX
Reach Trucks Linde ML14ASX
Reach Trucks Linde ML14ASX

Technical specs - ML14ASX Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.36 t
Total width
850 mm
Construction height
2108 mm
Standard tyres
Drive: 10x4 / Load: 2x4x2.75
Centre of gravity
610 mm
Voltage
24 V
Weight
1.7 t
Lifting height
3.2 m
Turning radius
1.59 m
Model series
8907

More technical details, like: drive system, traction motor, hoist motor, battery weight, travel speed with / without load, hoisting with / without load, lowering with load are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Triplex mast (5,2m) and side shifting device.

Download datasheets (PDF)

Linde ML14ASX overview

Drive

Electrical

24-Volt ZAPI AC-0 inverter. Travel control with matching drive motor (for high performance throughout the entire speed range). Travel speed remains constant relative to throttle position regardless of load. Separately fused power control circuits. Quick disconnect EPD power cut off. Hour meter/battery discharge indicator combination gauge. Power configurations and diagnostic features are displayed with a ZAPI handheld console.


Brakes

Regenerative electromagnetic brake is mounted on the motor armature shaft multiplying the braking power through the transmission. Brake is applied when the control arm is in vertical or horizontal handle position. Travel speed is reduced when forks are above 12" fork height. Neutral braking resists roll back on ramps.


Mast & Pantograph

When the operator removes their hand from travel control. When travel speeds are reduced, electromagnetic parking brake is applied after the truck is stopped.


Handling

Straddle Legs & Forks

Fixed straddle leg inside dimensions (ID) available at 34" or 42", resulting in 42" or 50" outside dimension (OD). It features a class two ITA fork carriage with a 36" tall load back rest, and the 42" forks are adjustable.


Performance

Hydraulics

Lift cylinder with hard chrome plated rods. Pump unit is mounted high in power compartment for ease of service, which includes motor, solenoid, gear pump, and pressure compensated lowering valve.
