Toyota THD8600-L5
- Nominal load at COG:
- 39.009 t
- Centre of gravity:
- 2464 mm
- Standard tyres:
- 18.00-25-40PR / 18.00-25-40PR
- Weight:
- 84.596 t

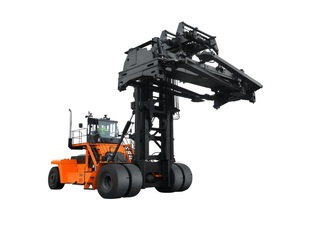

THD8600-L5 Toyota Reach Stacker Specs & Dimensions (2019 - 2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - THD8600-L5 Toyota
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 39.009 t
- Centre of gravity
- 2464 mm
- Standard tyres
- 18.00-25-40PR / 18.00-25-40PR
- Weight
- 84.596 t
- Construction height
- 9474 mm
- Travel speed with / without load
- 30.9 km/h
- Turning radius
- 8.128 m
- Wheel base
- 5.994 m
- Model series
- THD
- Engine manuf.
- Cummins
- Engine type
- 10.8L QSM11
- Engine power
- 246 kW
- Displacement
- 10.815 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 1674 Nm
- No. of cylinders
- 6
- Emission level
- Tier 3
More technical details, like: transmission type, max. reach horizontal, total width, lifting height, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
