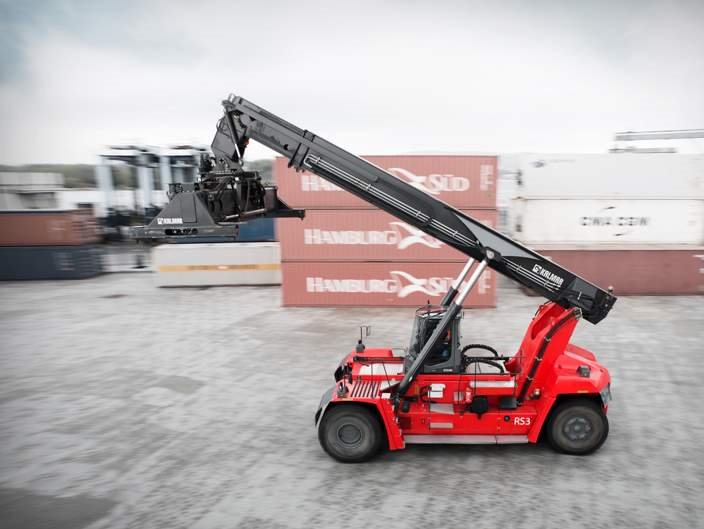

Kalmar DRG450-75S5SX
- Nominal load at COG:
- 45 t
- Centre of gravity:
- 1865 mm
- Standard tyres:
- 18x33, PR36, E4
- Max. Reach horizontal:
- 7 m
DRG450-75S5SX Kalmar Reach Stacker Specs & Dimensions (2023 - 2026)
Technical specs - DRG450-75S5SX Kalmar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 45 t
- Centre of gravity
- 1865 mm
- Standard tyres
- 18x33, PR36, E4
- Max. Reach horizontal
- 7 m
- Weight
- 82.4 t
- Total width
- 4150 mm
- Construction height
- 4750 mm
- Lifting height
- 15.2 m
- Travel speed with / without load
- 24/26 km/h
- Turning radius
- 9.4 m
- Wheel base
- 7.5 m
- Model series
- DRG
- Engine manuf.
- Volvo
- Engine type
- TAD1151VE
- Engine power
- 265 kW
- Displacement
- 10.84 l
- Max. torque
- 1830/1400 Nm
- No. of cylinders
- 6
- Emission level
- EU3/Tier 3
More technical details, like: transmission type, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
