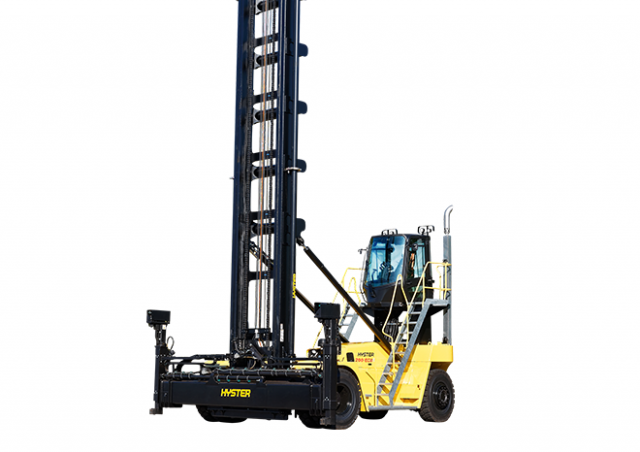

Hyster H180HD-EC6
- Nominal load at COG:
- 8.17 t
- Centre of gravity:
- 1220 mm
- Standard tyres:
- Pneumatic. 14.00-24 24PR. x4 / 2
- Weight:
- 35.56 t
H180HD-EC6 Hyster Reach Stacker Specs & Dimensions (2019 - 2026)
Technical specs - H180HD-EC6 Hyster
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 8.17 t
- Centre of gravity
- 1220 mm
- Standard tyres
- Pneumatic. 14.00-24 24PR. x4 / 2
- Weight
- 35.56 t
- Total width
- 4110 mm
- Construction height
- 9495 mm
- Lifting height
- 16.17 m
- Travel speed with / without load
- 12.4/20 km/h
- Turning radius
- 6.8 m
- Wheel base
- 4.5 m
- Model series
- H
- Engine manuf.
- Cummins
- Engine type
- QSB6.7
- Engine power
- 168 kW
- Displacement
- 6.7 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 1040 Nm
- No. of cylinders
- 6
- Emission level
- T4F
More technical details, like: transmission type, max. reach horizontal, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
