Toyota THD1500-E3
- Nominal load at COG:
- 6.804 t
- Centre of gravity:
- 2464 mm
- Standard tyres:
- 4x / 2 Pneumatic
- Weight:
- 41.966 t

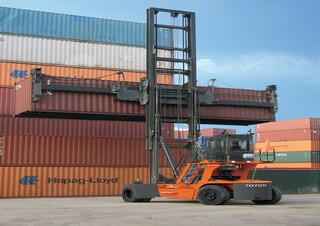

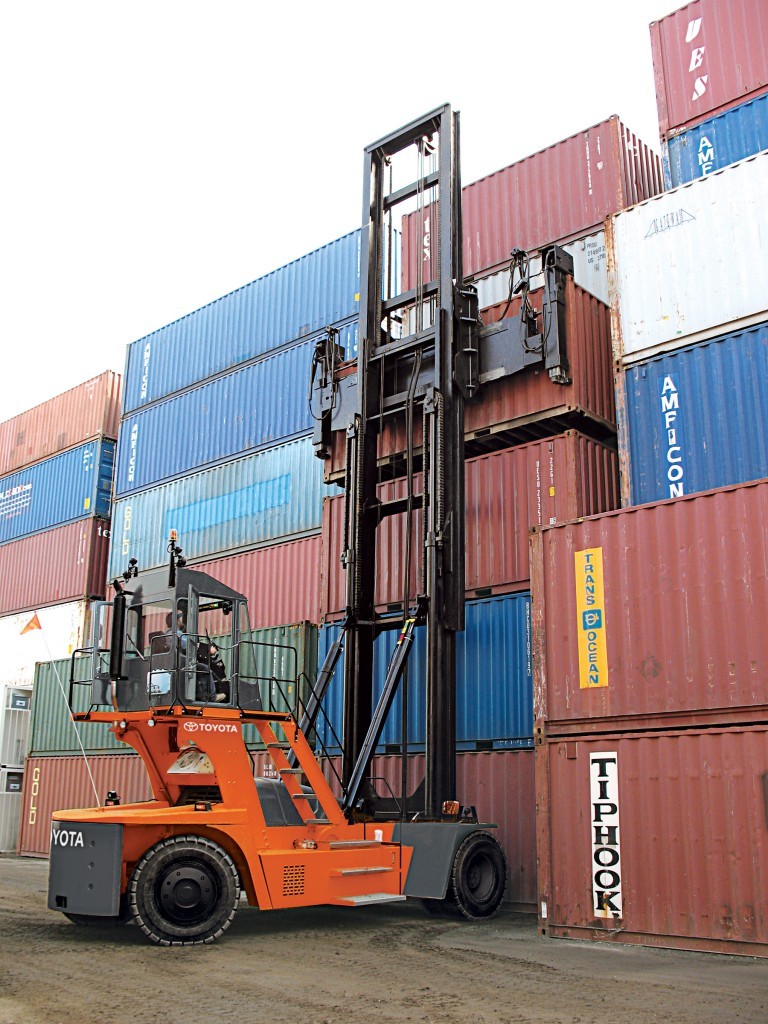

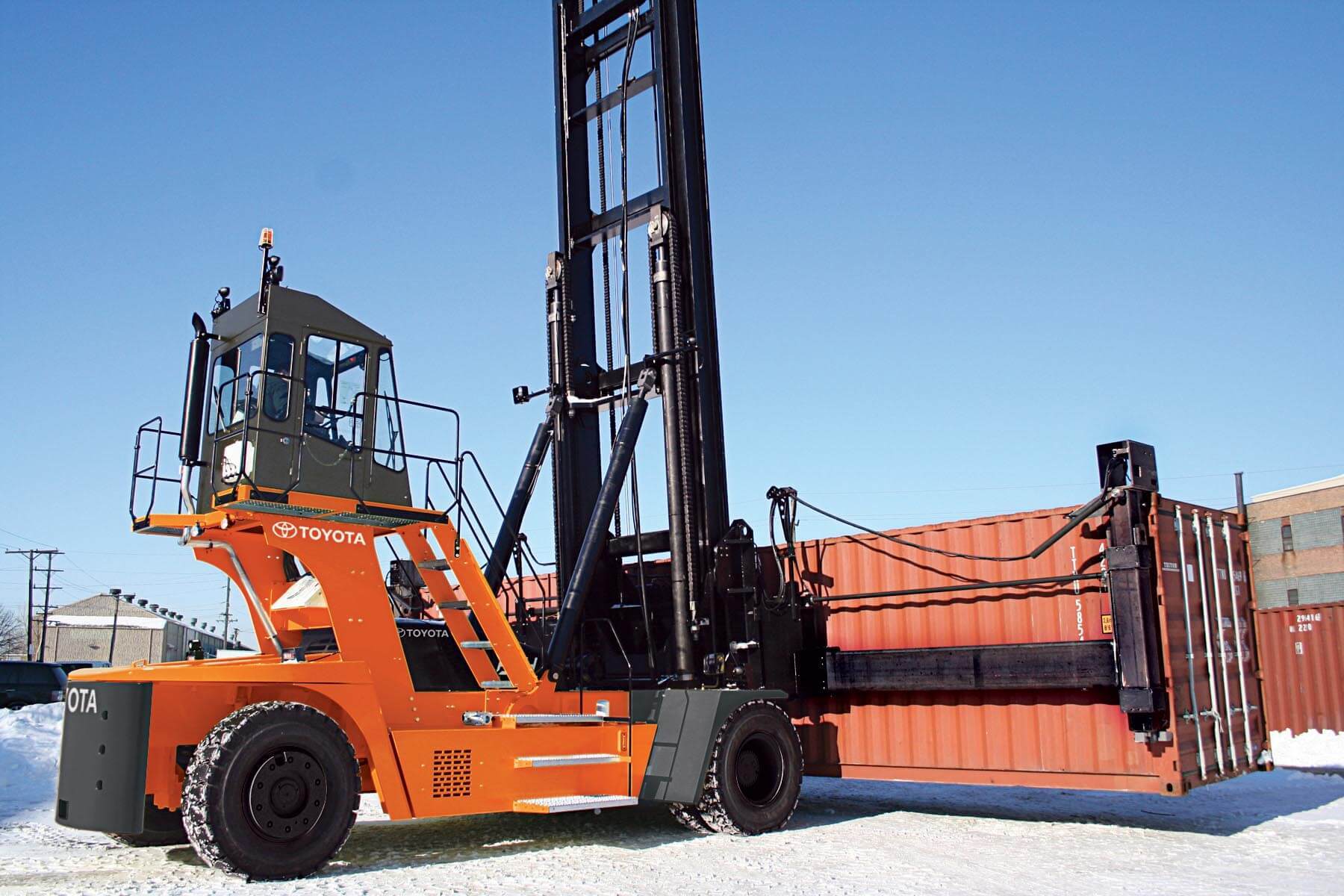

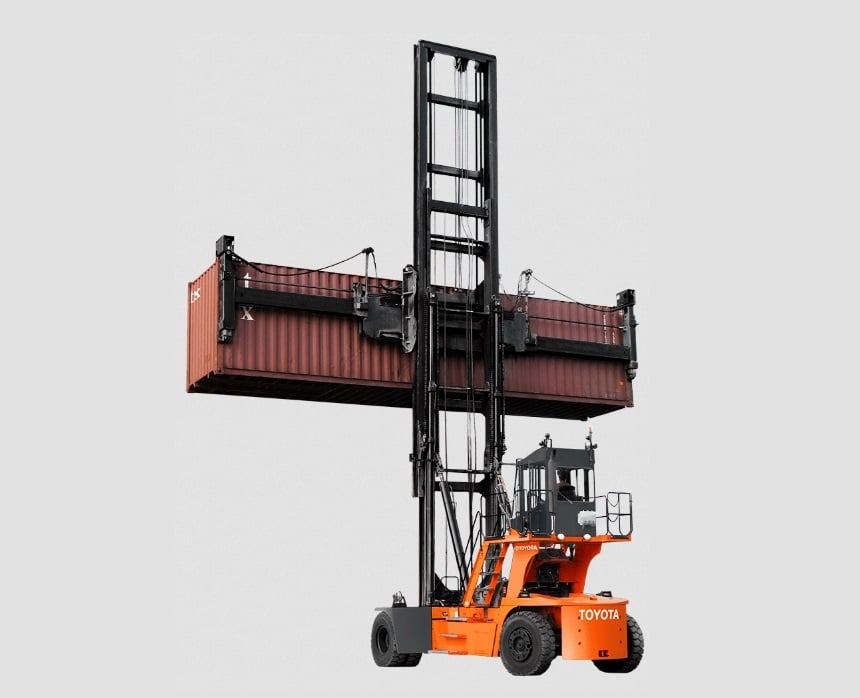

THD1500-E3 Toyota Reach Stacker Specs & Dimensions (2019 - 2022)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - THD1500-E3 Toyota
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 6.804 t
- Centre of gravity
- 2464 mm
- Standard tyres
- 4x / 2 Pneumatic
- Weight
- 41.966 t
- Total width
- 3981 mm
- Construction height
- 5918 mm
- Travel speed with / without load
- 40 km/h
- Turning radius
- 5.537 m
- Wheel base
- 3.658 m
- Model series
- THD
- Engine manuf.
- Cummins
- Engine type
- 6.7L QSB
- Engine power
- 119 kW
- Displacement
- 6.702 l
- Revolutions at max torque
- 2500 rpm
- Max. torque
- 456 Nm
- Emission level
- Tier 3
More technical details, like: transmission type, max. reach horizontal, lifting height, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
