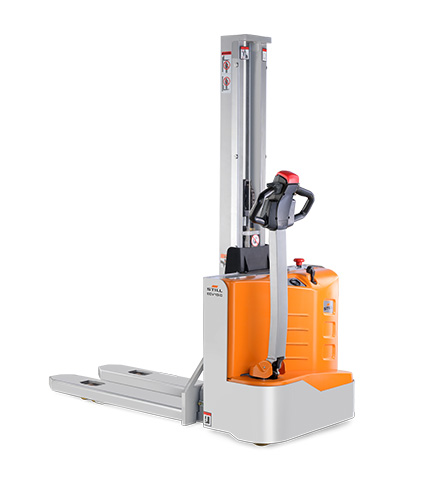

    Still ECV 10 C Specifications & Technical Data (2018-2022)

    Rate this machine now!

    Nominal load at COG: 1t – Wheel base: 1.126m – Standard tyres: 1x1/4 – Transport length: 1.615m – Transport width: 0.8m – Transport height: 1.94m

    Technical specs - ECV 10 C Still

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 1 t
    • Wheel base 1.126 m
    • Standard tyres 1x1/4
    • Transport length 1.615 m
    • Transport width 0.8 m
    • Transport height 1.94 m
    • Centre of gravity 600 mm
    • Lifting height 1.867 m
    • Traction motor 0.65 kW
    • Hoist motor 2.2 kW
    • Battery capacity 2x12/85 V/Ah
    • Weight 0.462 t
    • Battery weight 2x25 t
    • Travel speed with / without load 4/4,5 km/h
    • Hoisting with / without load 0,1/,17 m/s
    • Lowering with load 0,2/0,13 m/s
    • max. climbing ability 5/15 %
    • Turning radius 1.337 m

    Special equipment

    • Double lift
    • Initial lift
    • Platform foldable
    • Scissor lift

    Carbon footprint calculator for Walkie Stackers

    See the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Still ECV 10 C or other Walkie Stackers.

    The footprint calculation can be carried out based on different energy consumption scenarios or other variables.

    or go to the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

    service provided by ERA

    Buy & Rent

    Compare Still ECV 10 C with similar Walkie Stackers

    Press 1 image

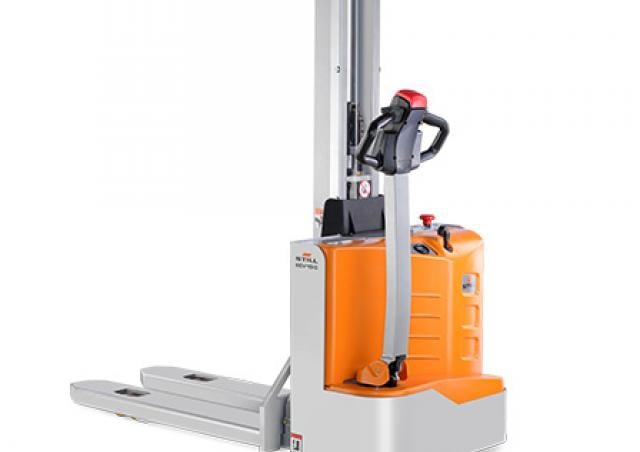

    Still ECV 10 C
