EWS12 Linde pallet jacks specs & dimensions (2022 - 2026)

Nominal load at COG: 1.13t – Wheel base: 1.25m – Standard tyres: Drive: 230x75 / Load: 1016x73 – Transport length: 1.81m – Transpo…

Nominal load at COG: 1.13t – Wheel base: 1.25m – Standard tyres: Drive: 230x75 / Load: 1016x73 – Transport length: 1.81m – Transport width: 1.3m – Transport height: 1.22m

Pallet jacks EWS12 manufactured by Linde, production years (2022 - 2026). Explore detailed EWS12 pallet jack specs: technical details, table charts and data sheets to download. Check also the other models produced by Linde.

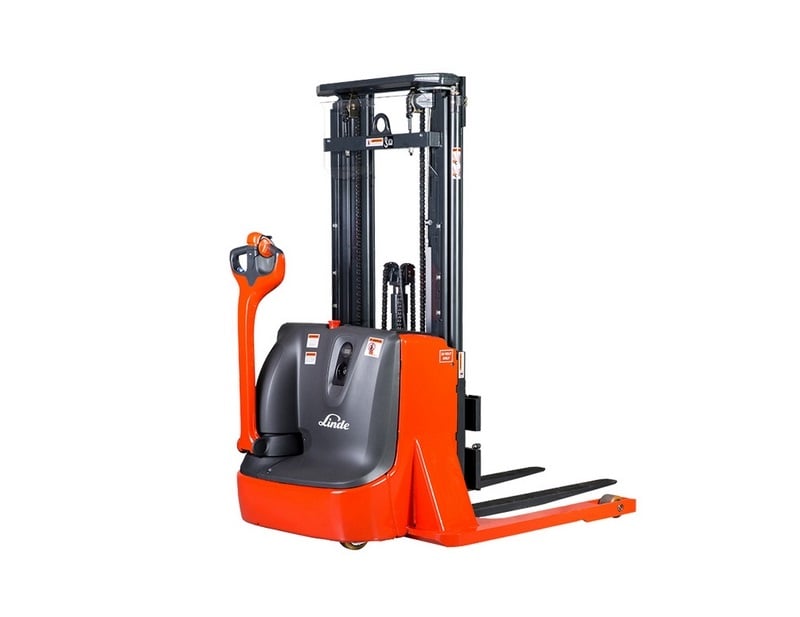

Pallet Jacks Linde EWS12

Technical specs - EWS12 Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.13 t
Wheel base
1.25 m
Standard tyres
Drive: 230x75 / Load: 1016x73
Transport length
1.81 m
Transport width
1.3 m
Transport height
1.22 m
Centre of gravity
610 mm
Lifting height
0.15 m
Traction motor
1.2 kW
Hoist motor
3.2 kW
Battery capacity
24/195 V/Ah
Weight
1.13 t
Battery weight
0.17 t
Travel speed with / without load
6.6/6.6 km/h
Hoisting with / without load
0.13/0.21 m/s
Lowering with load
0.35 m/s
Turning radius
1.52 m
Model series
1169

Special equipment

Double lift
No
Initial lift
No

Download datasheets (PDF)

Linde EWS12 overview

Linde EWS12 features overview

Performance

The 24-volt Walkie Straddle is a cost-effective way to handle your product efficiently with excellent maneuverability. With a high level of performance, even the most demanding applications are a good fit for the Electric Walkie Stacker.


Drive

Drive Motor

The EWS has a 24-volt AC enclosed motor, with few moving parts under the compartment. Excellent performance, dependability, and low energy consumption are provided with the latest AC technology available. When you match the drive unit and fewer electrical connections, you have a dependable unit you can count on.


Handling

Maintenance

All electric, electronic, and hydraulic components are conveniently mounted in the chassis. Accessibility is easy, even with the truck in the working aisle. These time and money saving details are appreciated by both the technician and operations manager.


Performance

Linde Controller

Maintenance-free ensures: efficient, infinite control from zero to creep speed, and up to maximum speed. The EWS accelerates and decelerates sensitively and smoothly. Less AMP draw relates to long run times between charge. The result, efficient maintenance-free components, ensures a dependable cost-effective answer to your material handling needs. The new stacker also includes an advanced torque range when operating in an uneven floor environment. An example would be large expansion joints, inclines or whenever extra torque is needed.
