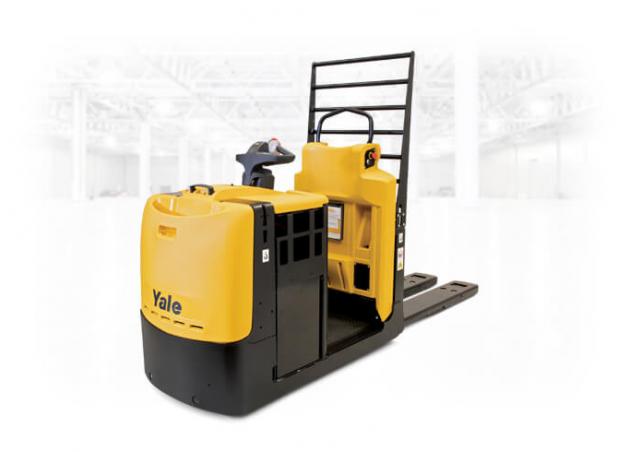

    Yale MO55 Specifications & Technical Data (2022-2022)

    Rate this machine now!

    Nominal load at COG: 2.5t – Wheel base: 2.543m – Pallet length: 2.411m – Pallet width: 0.184m – Transport length: 3.819m – Transport width: 0.796m

    Technical specs - MO55 Yale

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 2.5 t
    • Wheel base 2.543 m
    • Pallet length 2.411 m
    • Pallet width 0.184 m
    • Transport length 3.819 m
    • Transport width 0.796 m
    • Transport height 1.36 m
    • Aisle Width 2.827 m
    • Lifting height 0.12 m
    • Traction motor 2.6 kW
    • Hoist motor 2 kW
    • Weight 1.31 t
    • Battery weight 0.504 t
    • Battery capacity 34 V/Ah
    • Travel speed with / without load 8,5/10,5 km/h
    • Hoisting with / without load 0,039/0,023 m/s
    • Lowering with load 0.038 m/s
    • Turning radius 1.747 m

    Special equipment

    • Initial lift
    • Scissor lift
    • Lifting platforms
