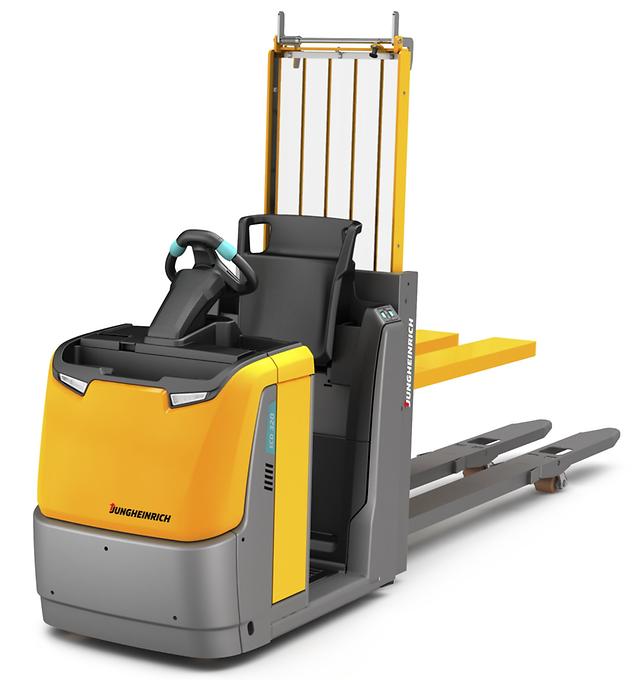

ECD 320 Jungheinrich Order Picker Specs & Dimensions (2017 - 2026)

Powerful and efficient drive concept

Powerful acceleration and high top speed. Safe cornering speed due to Curve Control (optional). drivePLUS options package with high efficiency. 3.2-kW motor for even greater drive and acceleration performance with load-dependent curveCONTROL. Regenerative braking with energy recovery.

Rugged construction for the toughest applications

Impact-resistant steel drive panel. High-quality stainless steel skirt raised extra high on the front panel. Tension-proof load forks with draw bar kinematics prevent distortion even with heavy loads and long forks.

Long operating times available with lead-acid battery

Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times. Different batteries available from 375 Ah to 620 Ah. Lateral battery exchange option for multi-shift environments (optional).

Lithium-ion technology

High degree of availability thanks to extremely short charging times. No battery exchange required. No charging rooms and ventilation required as there is no build up of gas. Longer service life with 5-year Jungheinrich guarantee.

Ergonomic and efficient work

The ergonomic lift of the ECD 320 facilitates comfortable and time-saving order picking. Mast lift to 700 mm (1500 mm optional) for depositing goods at an ergonomic height. Placing of a fully picked pallet on the longer initial lift forks for lower centre of gravity and fast continuation of the picking process with a second pallet. Load guard (optional) and pallet holder for picking up both pallets before starting the picking process: To do this, one pallet is placed upright on the load guard and fixed with the pallet holder. Once picking of the first pallet is complete, the order picking process can be continued directly with the second pallet.

Optional accessories

Additional accessories for working at the second rack-level. Sturdy, universally applicable options bracket, e.g. for radio data transmission components.

All the better to see and be seen

Integrated dayLED daytime running lights for better visibility in poorly lit areas (optional). Floor-Spot – significant reduction in the risk of collision in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).
