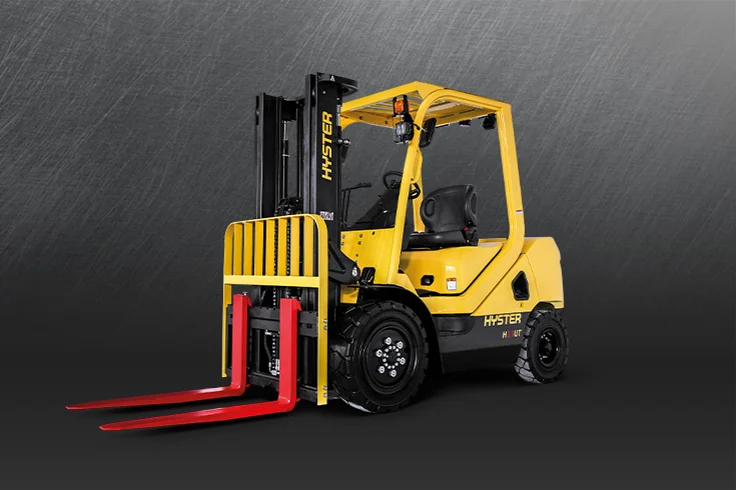

H2.5UT Hyster LPG Forklift Specs & Dimensions (2019 - 2026)

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Standard tyres: L 2x/2 – Transmission type: W – Weight: 3.65t – Total width…

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Standard tyres: L 2x/2 – Transmission type: W – Weight: 3.65t – Total width: 1150mm

Hyster is the manufacturer of the H2.5UT LPG forklift. The production years for this model are (2019 - 2026). Find here detailed specs for H2.5UT LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Hyster.

LPG Forklifts Hyster H2.5UT

Technical specs - H2.5UT Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.5 t
Centre of gravity
500 mm
Standard tyres
L 2x/2
Transmission type
W
Weight
3.65 t
Total width
1150 mm
Construction height
2180 mm
Turning radius
2.35 m
Lifting height
3.58 m
Travel speed with / without load
19/19 km/h
Hoisting with / without load
0.42/0.54 m/s
Lowering with load
0,45/0,41 m/s
max. climbing ability
19,5 %
Model series
H
Engine manuf.
GCT
Engine type
K25
Engine power
37.4 kW
Displacement
2.5 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
IIIA

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
