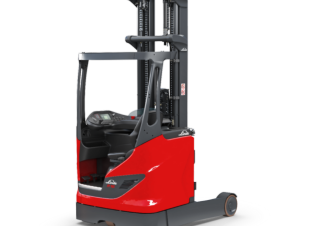

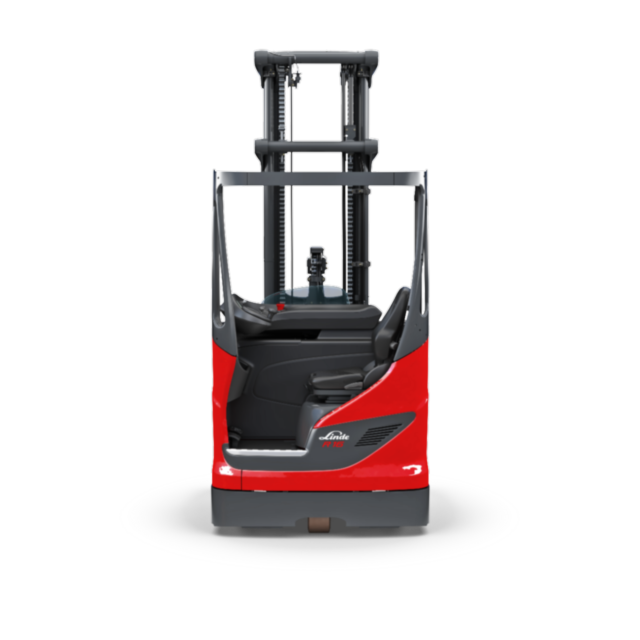

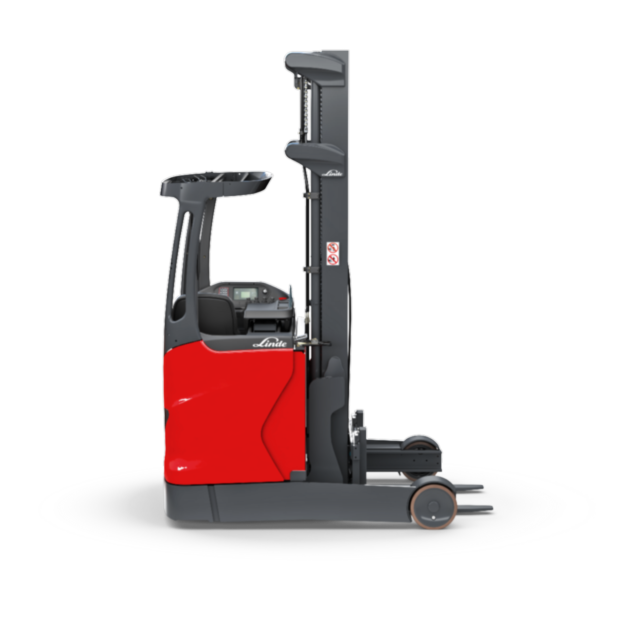

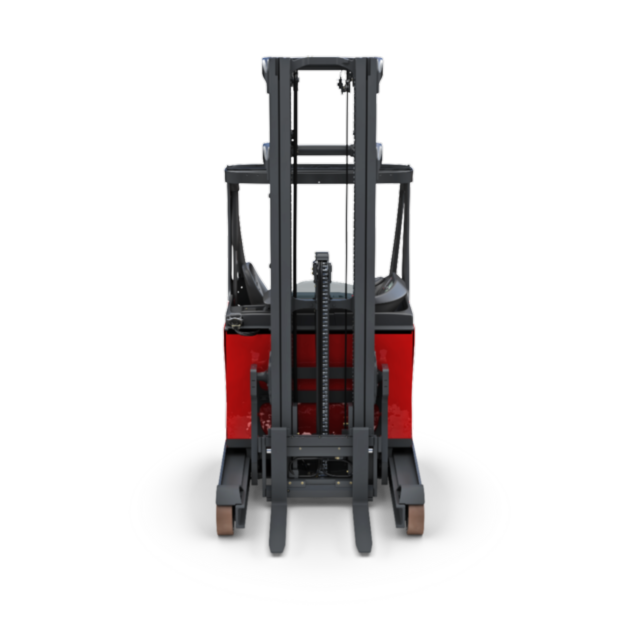

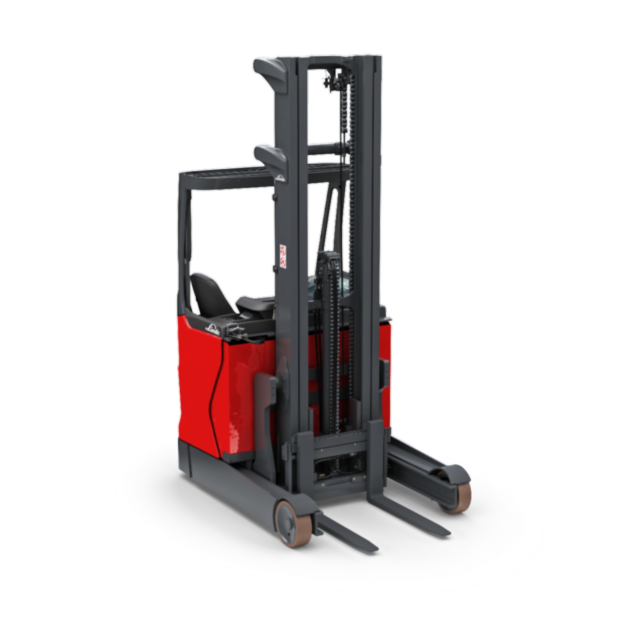

R12B Std. Linde Explosion Proof Reach Truck Specs & Dimensions (2017 - 2025)

Nominal load at COG: 1t – Total width: 1270mm – Construction height: 3024mm – Standard tyres: PP 1x/2 – Centre of gravity: 600mm –…

Nominal load at COG: 1t – Total width: 1270mm – Construction height: 3024mm – Standard tyres: PP 1x/2 – Centre of gravity: 600mm – Drive system: G

R12B Std. explosion proof reach truck model manufactured by Linde in (2017 - 2025). Explore detailed R12B Std. explosion protected reach forklift specs: technical details, table charts and data sheets to download. Check also the other models produced by Linde.

Technical specs - R12B Std. Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1 t
Total width
1270 mm
Construction height
3024 mm
Standard tyres
PP 1x/2
Centre of gravity
600 mm
Drive system
G
Voltage
48 V
Traction motor
6.5 kW
Hoist motor
14 kW
Weight
2 t
Battery weight
0.75 t
Lifting height
4 m
Turning radius
1 m
Travel speed with / without load
11/11 km/h
Hoisting with / without load
0.45/0.57 m/s
Lowering with load
0.55 m/s
Model series
1120

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Triplex mast (5,2m) and side shifting device.
