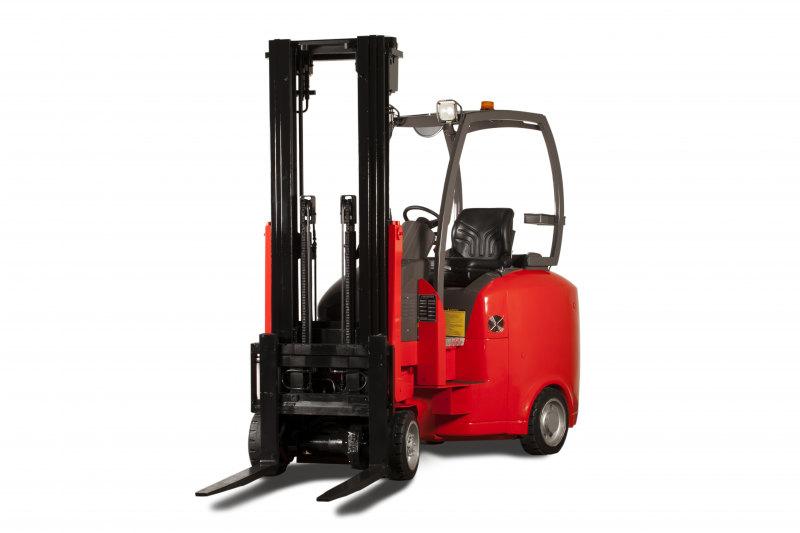

    Manitou EMA II 20 Specifications & Technical Data (2020-2021)

    Rate this machine now!

    Nominal load at COG: 2t – Standard tyres: F:412x178/R:457x152 – Total width: 1250mm – Construction height: 2260mm – Centre of gravity: 500mm – Voltage: 48V

    Technical specs - EMA II 20 Manitou

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Nominal load at COG 2 t
    • Standard tyres F:412x178/R:457x152
    • Total width 1250 mm
    • Construction height 2260 mm
    • Centre of gravity 500 mm
    • Voltage 48 V
    • Traction motor 10 kW
    • Hoist motor 9 kW
    • Weight 6.6 t
    • Battery weight 1.14 t
    • Lifting height 7.62 m
    • Travel speed with / without load 9/9.5 km/h
    • Hoisting with / without load 0.35/0.45 m/s
    • Lowering with load 0.4 m/s
    • Drive system ###
    • Turning radius ###

    All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel
