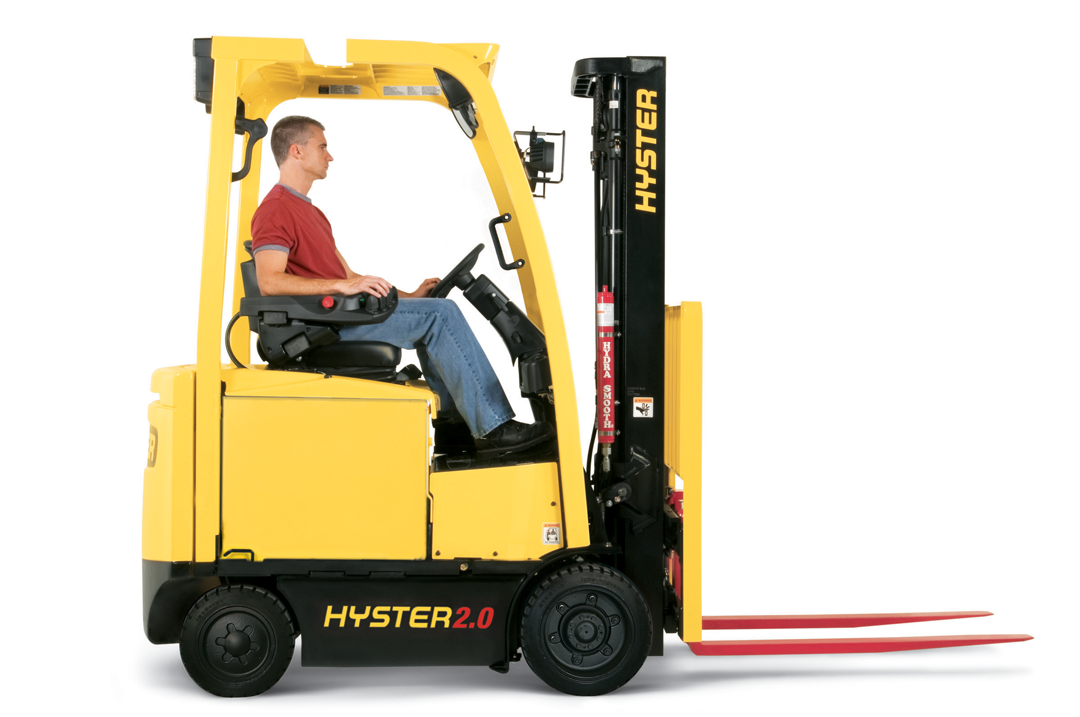

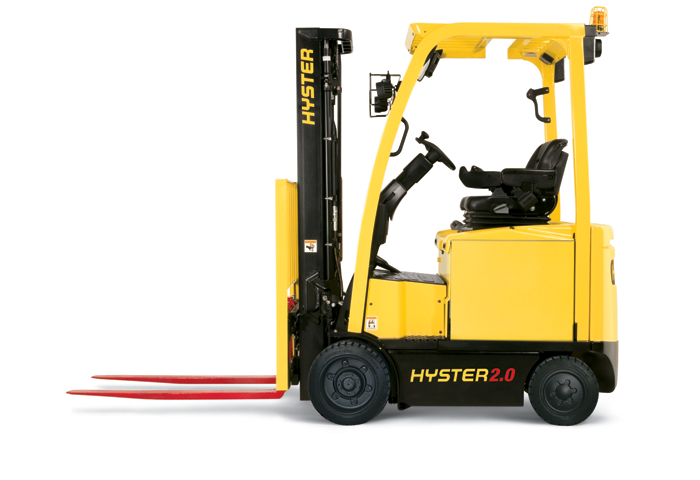

E2.0XN Hyster electric forklift specs & dimensions (2010 - 2015)

Dependability

New robust mast design provides excellent visibility and reliable, high performance lifting. Strong chassis construction and reliable, long-lasting components deliver excellent durability and stability, increasing driver confidence and enhancing productivity. AC motor technology on traction and hoist, with built in thermal management system, allows the truck to work reliably over long runs and in demanding work cycles, reducing downtime significantly. The electrical system features a CANbus communications network and Hall Effect sensors for increased reliability. IP65 protection of controls prevents ingress of water and dust particles, reducing the probability of truck downtime.

Serviceability

Standard 1 000 hour service interval. Service access is fast and unrestricted, with an easily removable two-piece floor plate providing access to brake fluid, hydraulic filter and valves, VSM, tilt cylinders and automatic park brake release. Battery is easily accessible thanks to the well designed hood, which opens to a wide angle with minimum effort. Access to diagnostic information via the display or plug-in point on the steering column allows service technicians to monitor truck operations and plan maintenance requirements. LED lights are designed to last the lifetime of the truck.

Equipment and weight

Weights (line 2.1) are based on the following specifications: Complete truck with 3 390 mm Vista 2-stage limited free lift mast, 910 mm hook type carriage with load backrest and 1 000 mm forks, minilevers, overhead guard and cushion tyres.

Productivity

AC traction motor delivers smooth acceleration, fast travel speeds and rapid direction changes with excellent torque performance. This is combined with regenerative braking to deliver efficient load handling in the toughest of applications. Compact dimensions deliver tight turning circles and class leading manoeuvrability when space is restricted, such as when working in aisles or congested loading/unloading bays or for application such as block stacking 1000mm loads. Powerful 48 V battery, offering extended battery shift life and optional side battery removal, delivers superb traction and hoist performance, for fast, efficient, uninterrupted load handling and simple fast recharging keeps trucks on the move. Selectable performance settings (HiP – High Performance & eLo – Energy Efficient) enable the truck to be configured to the varying needs of the application, delivering the right balance of performance and energy efficiency.

Low Cost of Ownership

Extended shift life reduces the need for battery recharging, saving time and money and increasing uptime. The Vehicle System Manager (VSM) allows adjustment of truck performance parameters and monitors key functions, leading to application matched performance and minimum downtime. Fast delivery of diagnostic information enables precise troubleshooting and easy maintenance planning and leads to lower operating costs.

Options

Mini-levers with travel and hydraulic functions integrated into the armrestSteering column with telescopic adjustment and memory tilt.Return to Set TiltIntegral sideshiftInterlock function for clamping attachments.Load weight indicatorImpact sensorMirrorsBack up alarmSide battery removalMonotrol pedalLight kitsKeyless start & operator passwordProgrammable maintenance reminderDaily operator checklistSystem monitoringDrive-in racking overhead guard
