GTP20SMX Yale diesel forklift specs & dimensions (2022 - 2026)

The Yale GTP20SMX is a diesel forklift manufactured by Yale since 2022. It has a weight of 3.05 tons and a nominal load at the cen…

The Yale GTP20SMX is a diesel forklift manufactured by Yale since 2022. It has a weight of 3.05 tons and a nominal load at the center of gravity of 2 tons. The lifting height reaches up to 3 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 30 percent. The hoisting speed with load is 0 m/s, while the lowering speed with load is 0.52 m/s. The total width of the forklift is 1135 mm, and it can travel at a speed of 18 km/h with or without load. The turning radius is 2.03 meters, and the construction height is 1995 mm.

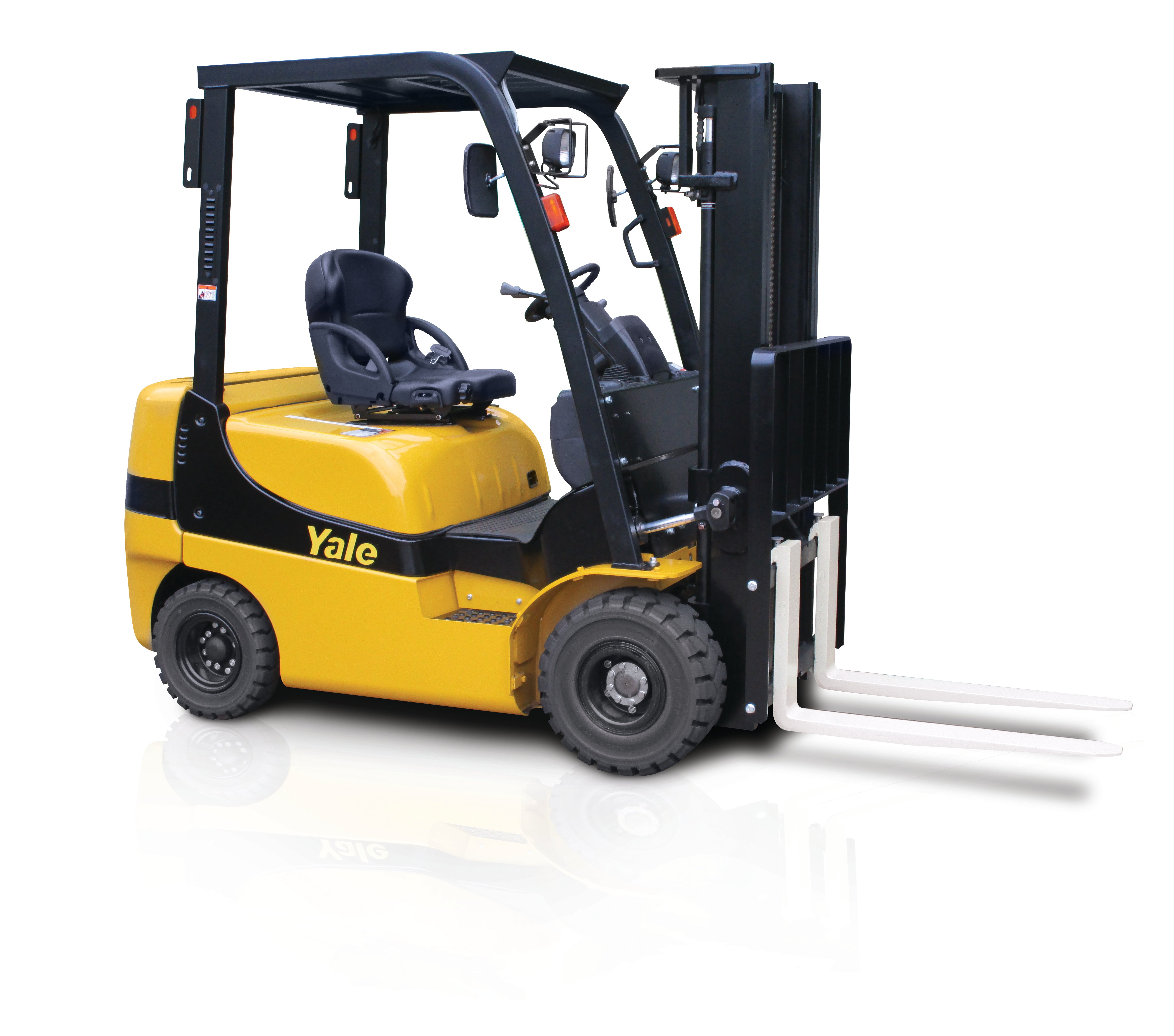

Diesel Forklifts Yale GTP20SMX

Visit Yale live at

Technical specs - GTP20SMX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
21x8-9-14PR(21x8-9-14PR)/18x7-8-10PR
Weight
3.05 t
Total width
1135 mm
Construction height
1995 mm
Turning radius
2.03 m
Lifting height
3 m
Travel speed with / without load
18/19.5 km/h
Hoisting with / without load
0.615/0.68 m/s
Lowering with load
0.52 m/s
max. climbing ability
30 %
Model series
GTP
Engine manuf.
GCT
Engine type
K21
Engine power
31 kW
Displacement
2.07 l
Revolutions at max torque
1600 rpm
Max. torque
158 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Yale GTP20SMX overview

Drive

Standard

Simplex mast Operator presence Hydraulic Interlock Traction Interlock Cowl mounted levers Trunnion mount mast Full halogen light kit including turn indicators Head light guards Rotating LED beacon Swing down LPG bracket Small diameter steering wheel Rubber floor mat Entry assist grip Electric directional shift lever Neutral start Reverse alarm Separate inch/brake podal Comprehensive dash display Single element air cleaner Rubber mount rear axle Wide mast with wide field vision


Handling

Options

Engine options – LPG, Diesel, Dual Fuel Mast options simplex mast – 3000mm to 5000mm lift duplex mast – 3300mm to 4100mm lift triplex mast – 4000mm to 6000mm lift Integral side shift carriage Fork lengths – 920mm to 2120mm Tyre options – pneumatic, solid, non-marking Control valve options Front screens Rain covers Cabs Pre-cleaner for air filter LED lighting Speed meter Load weight meter Special paint Reverse assist grip with horn button Yale Vision Telemetry


Performance

Continuous Stability Enhancement (CSE)

The maintenance free CSE enhances lateral stability without compromising uneven surface travel, through reducing truck lean by limiting the articulation of the steer axle.
