GP155VX Yale diesel forklift specs & dimensions (2019 - 2026)

The Yale GP155VX is a diesel forklift manufactured by Yale since 2019. It has a weight of 9 tons and a nominal load at the center …

The Yale GP155VX is a diesel forklift manufactured by Yale since 2019. It has a weight of 9 tons and a nominal load at the center of gravity of 7 tons. The lifting height reaches up to 5 meters, with a center of gravity at 610 mm. It has a maximum climbing ability of 33 percent. The total width of the forklift is 2082 mm, and it has a turning radius of 3.388 meters. The construction height is 3740 mm.

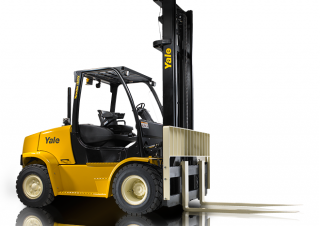

Diesel Forklifts Yale GP155VX

Visit Yale live at

Technical specs - GP155VX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
7 t
Centre of gravity
610 mm
Standard tyres
4x/2
Weight
9 t
Total width
2082 mm
Construction height
3740 mm
Turning radius
3.388 m
Lifting height
5 m
Travel speed with / without load
21.8/22.1 km/h
Hoisting with / without load
0.48/0.49 m/s
Lowering with load
0.58/0.53 m/s
max. climbing ability
33 %
Model series
GDP
Engine manuf.
Kubota
Engine type
N/A
Engine power
79 kW
Displacement
3.8 l
Revolutions at max torque
1600 rpm
Max. torque
373 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
