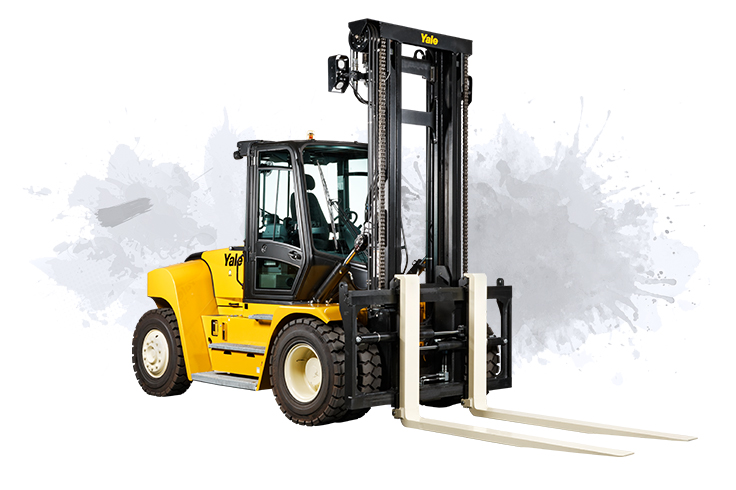

GDP100DFS Yale diesel forklift specs & dimensions (2022 - 2026)

The Yale GDP100SDF is a diesel forklift manufactured by Yale since 2022. It has a weight of 14.771 tons and a nominal load at the …

The Yale GDP100SDF is a diesel forklift manufactured by Yale since 2022. It has a weight of 14.771 tons and a nominal load at the center of gravity of 10.5 tons. The forklift can lift loads up to a height of 7 meters and has a center of gravity at 600 mm. With a total width of 2464 mm, it offers a turning radius of 3.926 meters.

Diesel Forklifts Yale GDP100DFS

Visit Yale live at

Technical specs - GDP100DFS Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
10.5 t
Centre of gravity
600 mm
Standard tyres
L 4x/2
Weight
14.883 t
Total width
2490 mm
Construction height
3082 mm
Turning radius
3.85 m
Lifting height
4.925 m
Lowering with load
0,5/0,48 m/s
Model series
GDP
Engine manuf.
Mercedes-Benz
Engine type
OM934
Engine power
116 kW
Displacement
5.3 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
V

More technical details, like: transmission type, travel speed with / without load, hoisting with / without load, max. climbing ability, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
