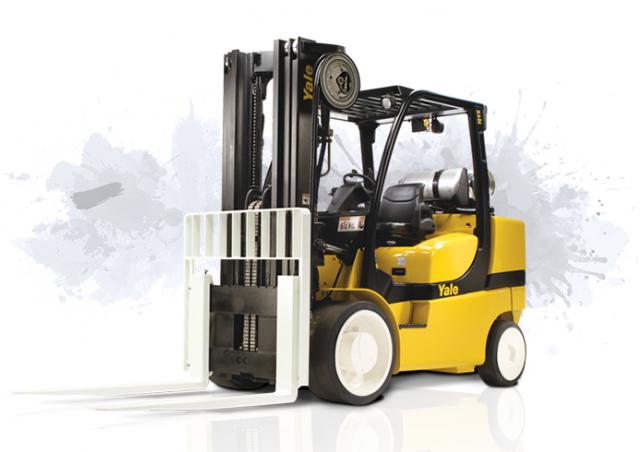

GDC70VX Value Yale diesel forklift specs & dimensions (2022 - 2026)

Name: Yale GDC70VX Value Diesel Forklifts
Brand: Yale

The Yale GDC 70VX Value is a diesel forklift manufactured by Yale since 2022. It has a weight of 9.531 tons and a nominal load at …

The Yale GDC 70VX Value is a diesel forklift manufactured by Yale since 2022. It has a weight of 9.531 tons and a nominal load at the center of gravity of 7 tons. The lifting height reaches up to 3.34 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 23.9 percent. The hoisting speed with load is 0 m/s, and the lowering speed with load is 0.58 m/s. The total width of the forklift is 1438 mm, and it can travel at a speed of 20 km/h with or without load. The turning radius is 2.585 meters, and the construction height is 2302 mm.

Visit Yale live at

GDC70VX Value

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

See offers

Technical specs - GDC70VX Value Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 7 t

Centre of gravity: 600 mm

Standard tyres: 2x/2

Weight: 9.53 t

Total width: 1438 mm

Construction height: 2302 mm

Turning radius: 2.59 m

Lifting height: 3.34 m

Travel speed with / without load: 20.9/20.2 km/h

Hoisting with / without load: 0.45/0.49 m/s

Lowering with load: 0.58/0.53 m/s

max. climbing ability: 23.9 %

Model series: GDC

Engine manuf.: Kubota

Engine type: V3800 E4

Engine power: 55 kW

Displacement: 3.8 l

Revolutions at max torque: 2200 rpm

Max. torque: 300/1400 Nm

No. of cylinders: 4

Emission level: IV

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

GDC70VX Value Yale Specification for Global (EN)
