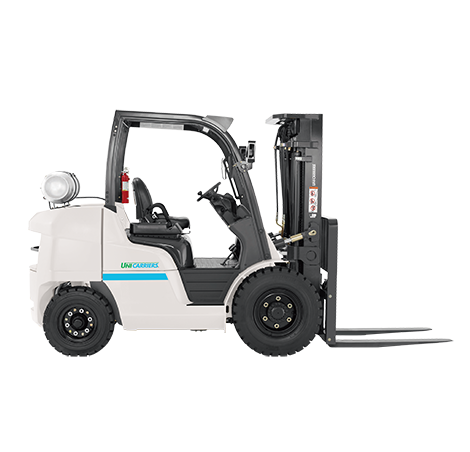

UniCarriers PFD80N diesel forklift specs (2022 - 2022)
UniCarriers is the manufacturer of the PFD80N diesel forklift. The production years for this model are (2022 - 2022). Find here de... Read more
UniCarriers is the manufacturer of the PFD80N diesel forklift. The production years for this model are (2022 - 2022). Find here detailed specs for PFD80N diesel powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by UniCarriers.
Technical specs - PFD80N UniCarriers
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Nominal load at COG 3.5 t
- Standard tyres Pneumatic, 2x/2
- Centre of gravity 600 mm
- Weight 5.95 t
- Total width 1415 mm
- Construction height 2296 mm
- Turning radius 2.58 m
- Lifting height 3.35 m
- Travel speed with / without load 21.5/22.5 km/h
- Hoisting with / without load 0.61/0.64 m/s
- Lowering with load 0.5 m/s
- max. climbing ability 28.7 %
- Engine manuf. N/A
- Engine type 4EGT
- Engine power 54 kW
- Displacement 3.33 l
- Revolutions at max torque 1800 rpm
- Max. torque 260 Nm
- No. of cylinders 4
- Emission level T4F
-
Transmission type
### -
Dimension lxwxh
### -
Cylinder bore x stroke
###
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
