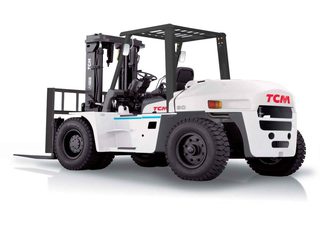

FD 80-2 TCM diesel forklift specs & dimensions (2007 - 2015)

The TCM FD 80-2 diesel forklift, manufactured from 2007 to 2015, weighs 11.23 tons and has a nominal load capacity of 8 tons at th…

The TCM FD 80-2 diesel forklift, manufactured from 2007 to 2015, weighs 11.23 tons and has a nominal load capacity of 8 tons at the center of gravity. It can lift loads up to a height of 3 meters with a center of gravity at 600 mm. The forklift has a total width of 2165 mm and can travel at a speed of 32 km/h with or without a load. It has a turning radius of 3.63 meters and a construction height of 2640 mm.

Diesel Forklifts TCM FD 80-2
Diesel Forklifts TCM FD 80-2
Diesel Forklifts TCM FD 80-2
Diesel Forklifts TCM FD 80-2
Diesel Forklifts TCM FD 80-2
Diesel Forklifts TCM FD 80-2

Technical specs - FD 80-2 TCM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
8 t
Centre of gravity
600 mm
Standard tyres
P 4/2
Transmission type
W
Weight
11.23 t
Total width
2165 mm
Construction height
2640 mm
Turning radius
3.63 m
Lifting height
3 m
Travel speed with / without load
32 km/h
Model series
Alpha
Engine manuf.
Isuzu
Engine type
4 HK 1 TC
Engine power
87 kW

More technical details, like: hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
