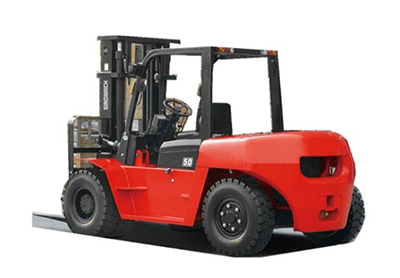

Sinomach CPCD100
- Nominal load at COG:
- 10 t
- Centre of gravity:
- 600 mm
- Standard tyres:
- 9.00-20-14PR
- Weight:
- 13 t
CPCD100 Sinomach diesel forklift specs & dimensions (2025 - 2026)
.jpg)
Technical specs - CPCD100 Sinomach
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 10 t
- Centre of gravity
- 600 mm
- Standard tyres
- 9.00-20-14PR
- Weight
- 13 t
- Total width
- 2165 mm
- Construction height
- 2850 mm
- Turning radius
- 4.05 m
- Lifting height
- 3 m
- max. climbing ability
- 20 %
- Model series
- CPCD
- Engine manuf.
- Isuzu
- Engine type
- BB-6BG1TRC
- Engine power
- 97.7 kW
- Displacement
- 6.494 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 490 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 105x125 mm
- Emission level
- Stage II
More technical details, like: transmission type, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
