    Lectura specs Forklifts Diesel Forklifts Diesel Forklifts Sany Sany SCP160G specifications

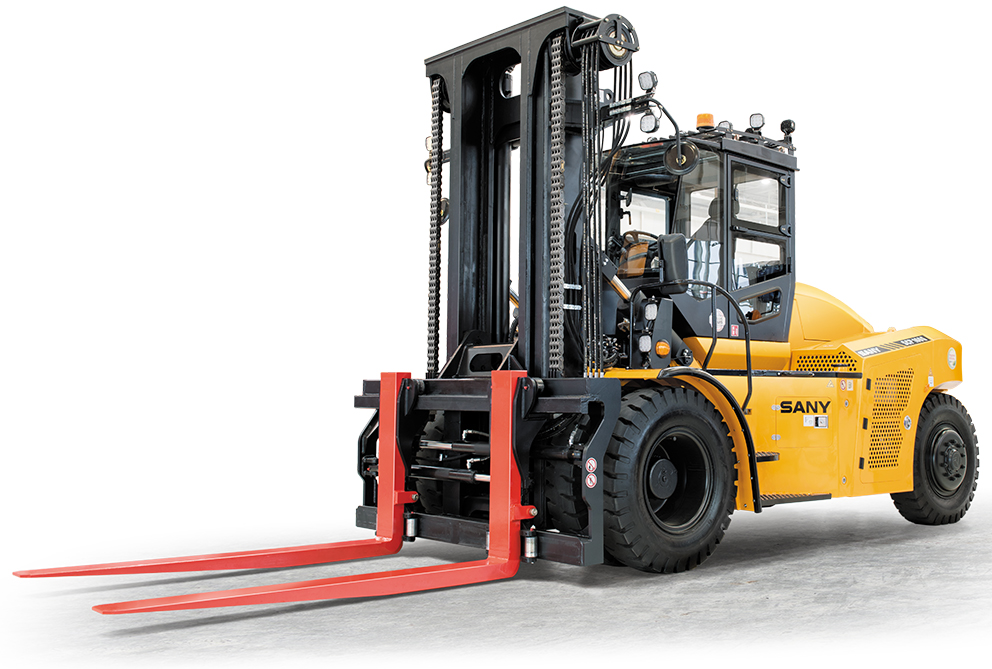

    Technical specs - SCP160G Sany

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 16 t
    Standard tyres 12.00x24 28 PR
    Centre of gravity 1200 mm
    Transmission type W
    Weight 25.5 t
    Total width 2675 mm
    Construction height 3760 mm
    Turning radius 5.1 m
    Lifting height 4 m
    Travel speed with / without load 28/30 km/h
    Hoisting with / without load 0.35/0.4 m/s
    Lowering with load 0.4 m/s
    max. climbing ability 33/42 %
    Engine manuf. Volvo
    Engine type TAD572VE
    Engine power 160 kW
    Engine power 217 HP
    Displacement 5.13 l
    Revolutions at max torque 2300 rpm
    Max. torque 910/1450 Nm
    Emission level IV
    Dimension lxwxh ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

    RAVAS iForks-32 weight scaling solution for your Sany SCP160G

    RAVAS iForks-32

    Successful RAVAS scale forks

    Fit iForks for your Sany SCP160G and realise immediate cost savings

    Functions:

    Gross/net weighing

    Totalling with sequence number

    Weight data transfer to smart phone, tablet, handheld and WMS/ERP system

    Benefits:

    Installation within 5 minutes

    Completely wireless with digital calibration

    More information
