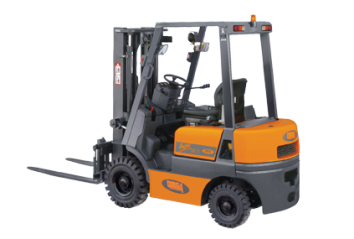

Ergos 15 D OMG diesel forklift specs & dimensions (2005 - 2022)

The OMG Ergos 15 D is a diesel forklift manufactured since 2005. It has a weight of 3 tons and a nominal load at the center of gra…

The OMG Ergos 15 D is a diesel forklift manufactured since 2005. It has a weight of 3 tons and a nominal load at the center of gravity of 1.5 tons. The lifting height reaches up to 4 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 26 percent. The total width of the forklift is 1065 mm, and it has a turning radius of 1.95 meters. The construction height is 2235 mm.

Diesel Forklifts OMG Ergos 15 D
OMG Ergos 15 D Dimensions and Size
Diesel Forklifts OMG Ergos 15 D
OMG Ergos 15 D Dimensions and Size

Technical specs - Ergos 15 D OMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.5 t
Centre of gravity
500 mm
Standard tyres
SE 4
Transmission type
W
Weight
3 t
Total width
1065 mm
Construction height
2235 mm
Turning radius
1.95 m
Lifting height
4 m
Travel speed with / without load
16/17 km/h
Hoisting with / without load
0.51/0.54 m/s
Lowering with load
0.45/0.44 m/s
max. climbing ability
26 %
Model series
Ergos
Engine manuf.
Isuzu
Engine type
C-240
Engine power
37 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
