FD15 OCTANE diesel forklift specs & dimensions (2024 - 2026)

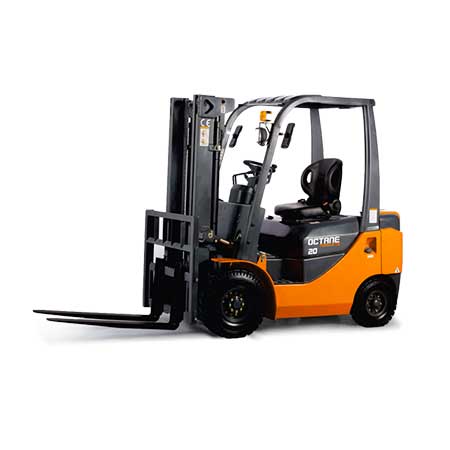

Name: OCTANE FD15 Diesel Forklifts
Brand: OCTANE

Nominal load at COG: 1.5t – Centre of gravity: 500mm – Standard tyres: F: 6.50-10-10PR / R: 5.00-8-10PR – Weight: 2.82t – Total wi…

Nominal load at COG: 1.5t – Centre of gravity: 500mm – Standard tyres: F: 6.50-10-10PR / R: 5.00-8-10PR – Weight: 2.82t – Total width: 1087mm – Construction height: 2040mm

OCTANE is the manufacturer of the FD15 diesel forklift. The production years for this model are (2024 - 2026). Find here detailed specs for FD15 diesel powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by OCTANE.

FD15

Years of manufacture: 2024—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

Technical specs - FD15 OCTANE

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 1.5 t

Centre of gravity: 500 mm

Standard tyres: F: 6.50-10-10PR / R: 5.00-8-10PR

Weight: 2.82 t

Total width: 1087 mm

Construction height: 2040 mm

Turning radius: 2.06 m

Lifting height: 3 m

Travel speed with / without load: 15 km/h

Hoisting with / without load: 0.45 m/s

max. climbing ability: 20 %

Model series: FD

Engine manuf.: Mitsubishi

Engine type: D04EG

Engine power: 26.8 kW

Displacement: 1.86 l

Revolutions at max torque: 1800 rpm

Max. torque: 177 Nm

No. of cylinders: 4

Cylinder bore x stroke: 88x102 mm

More technical details, like: transmission type, lowering with load, dimension lxwxh, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

FD15 OCTANE Specification for Global (EN)
