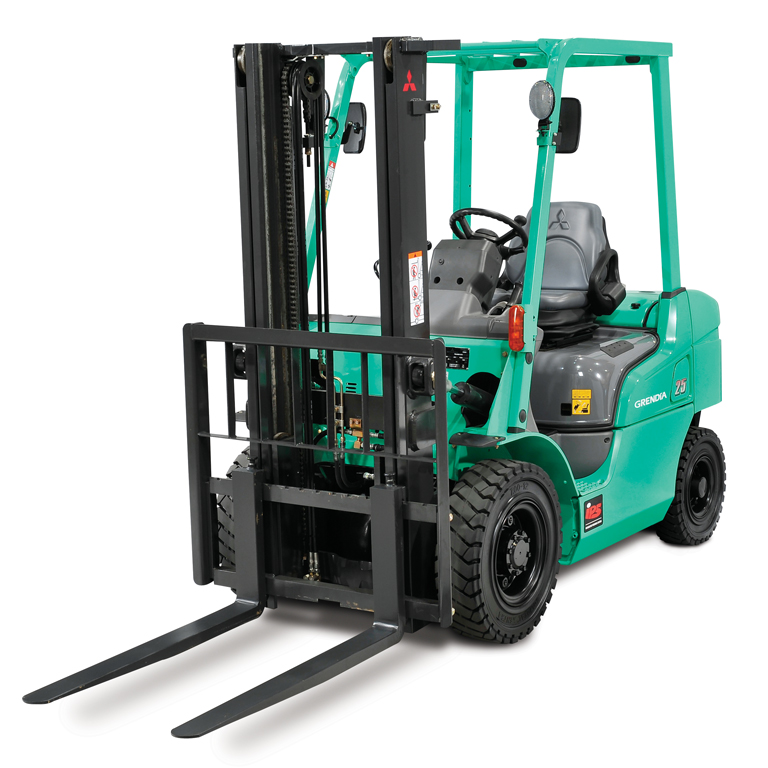

FD50NB Mitsubishi diesel forklift specs & dimensions (2016 - 2018)

Name: Mitsubishi FD50NB Diesel Forklifts
Brand: Mitsubishi

The Mitsubishi FD50NB diesel forklift, manufactured from 2016 to 2018, weighs 7.3 tons and has a nominal load capacity of 5 tons a…

The Mitsubishi FD50NB diesel forklift, manufactured from 2016 to 2018, weighs 7.3 tons and has a nominal load capacity of 5 tons at the center of gravity. It can lift loads up to a height of 5.5 meters and has a center of gravity at 600mm. With a maximum climbing ability of 21 percent, it can navigate inclines with ease. The forklift has a total width of 1965mm and a turning radius of 2.89 meters, allowing for maneuverability in tight spaces. Its construction height is 2400mm.

FD50NB

Years of manufacture: 2016—2018

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - FD50NB Mitsubishi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 5 t

Centre of gravity: 600 mm

Standard tyres: SE 2x/2

Transmission type: W

Weight: 7.3 t

Total width: 1965 mm

Construction height: 2400 mm

Turning radius: 2.89 m

Lifting height: 5.5 m

Travel speed with / without load: 21/26 km/h

Hoisting with / without load: 0.47/0.53 m/s

Lowering with load: 0.5 m/s

max. climbing ability: 21 %

Model series: FD

Engine manuf.: Mitsubishi

Engine type: S6S

Engine power: 57 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
