FD45N3 Mitsubishi diesel forklift specs & dimensions (2020 - 2026)

The Mitsubishi FD45N3 is a diesel forklift manufactured since 2020. It has a weight of 6.33 tons and a nominal load at the center …

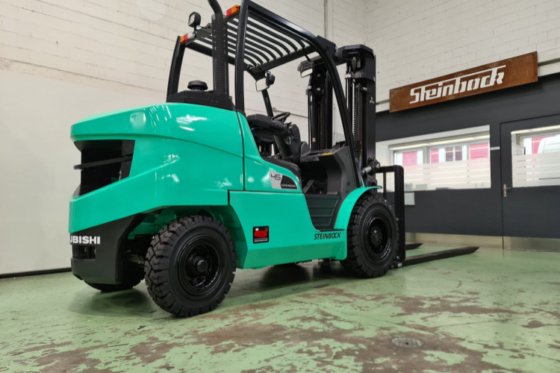

The Mitsubishi FD45N3 is a diesel forklift manufactured since 2020. It has a weight of 6.33 tons and a nominal load at the center of gravity of 4.5 tons. The lifting height reaches up to 5 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 26.5 percent. The total width of the forklift is 1780 mm, and it has a turning radius of 2.73 meters. The construction height is 2320 mm.

Diesel Forklifts Mitsubishi FD45N3

Technical specs - FD45N3 Mitsubishi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4.5 t
Centre of gravity
500 mm
Standard tyres
L 2x/2
Transmission type
W
Weight
6.33 t
Total width
1415 mm
Construction height
2295 mm
Turning radius
2.73 m
Lifting height
3.3 m
Travel speed with / without load
21.5/22.5 km/h
Hoisting with / without load
0.62/0.67 m/s
Lowering with load
0.50/0.50 m/s
max. climbing ability
26,5 %
Model series
Grendia EX
Engine manuf.
k.A.
Engine type
D04EG-T
Engine power
54 kW
Displacement
3.331 l
Revolutions at max torque
2250 rpm
Max. torque
260/1800 Nm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
