FD 60 Mitsubishi diesel forklift specs & dimensions (2006 - 2014)

Model rating
4,75 / 10

The Mitsubishi FD 60 is a diesel forklift manufactured from 2006 to 2014. It has a weight of 8.715 tons and a nominal load at the …

The Mitsubishi FD 60 is a diesel forklift manufactured from 2006 to 2014. It has a weight of 8.715 tons and a nominal load at the center of gravity of 6 tons. The forklift can lift loads up to a height of 3.3 meters and has a center of gravity at 600 mm. It has a maximum climbing ability of 27 percent and a total width of 2175 mm. The turning radius of the forklift is 3.31 meters and its construction height is 3070 mm.

Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60

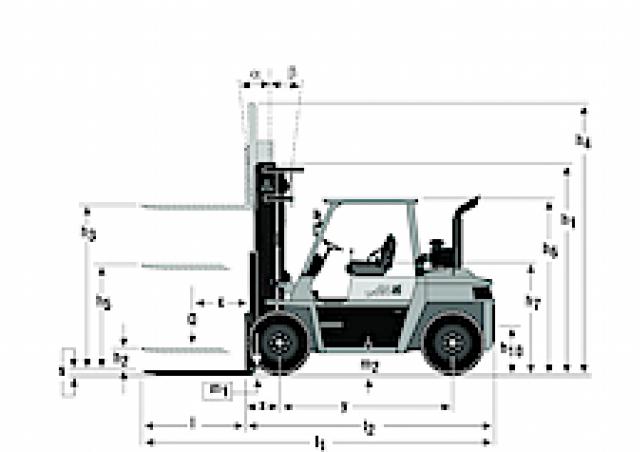

Mitsubishi FD 60 Dimensions and Size
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Diesel Forklifts Mitsubishi FD 60
Mitsubishi FD 60 Dimensions and Size

Technical specs - FD 60 Mitsubishi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
6 t
Centre of gravity
600 mm
Standard tyres
L 4x/2
Weight
8.715 t
Total width
2175 mm
Construction height
3070 mm
Turning radius
3.31 m
Lifting height
3.3 m
Travel speed with / without load
23/27.5 km/h
Hoisting with / without load
0.44/0.47 m/s
Lowering with load
0.55/0.55 m/s
max. climbing ability
27 %
Model series
FD
Engine manuf.
Mitsubishi
Engine type
S6S
Engine power
70 kW

More technical details, like: transmission type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
