FD 50 CN Mitsubishi diesel forklift specs & dimensions (2010 - 2015)

Model rating
8,50 / 10

The Mitsubishi FD 50 CN is a diesel forklift manufactured between 2010 and 2015. It has a weight of 6.8 tons and a nominal load ca…

The Mitsubishi FD 50 CN is a diesel forklift manufactured between 2010 and 2015. It has a weight of 6.8 tons and a nominal load capacity of 5 tons at the center of gravity. The forklift can lift loads up to a height of 5.5 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 21 percent and a total width of 1965 mm. The turning radius of the forklift is 2.8 meters, and its construction height is 2400 mm.

Diesel Forklifts Mitsubishi FD 50 CN
Diesel Forklifts Mitsubishi FD 50 CN
Diesel Forklifts Mitsubishi FD 50 CN
Diesel Forklifts Mitsubishi FD 50 CN
Diesel Forklifts Mitsubishi FD 50 CN

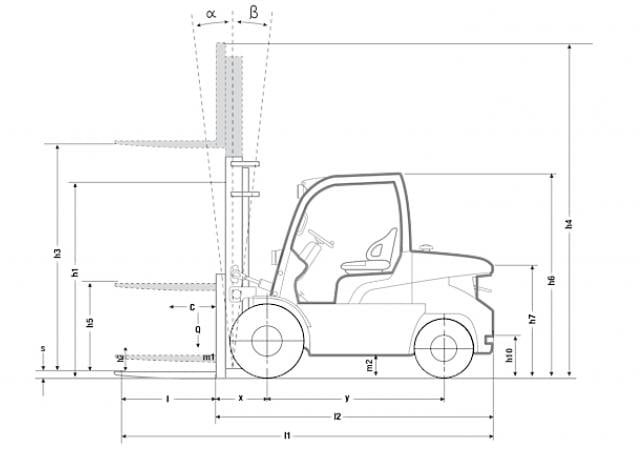

Mitsubishi FD 50 CN Dimensions and Size
Diesel Forklifts Mitsubishi FD 50 CN
Diesel Forklifts Mitsubishi FD 50 CN
Diesel Forklifts Mitsubishi FD 50 CN
Diesel Forklifts Mitsubishi FD 50 CN
Diesel Forklifts Mitsubishi FD 50 CN
Mitsubishi FD 50 CN Dimensions and Size

Technical specs - FD 50 CN Mitsubishi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
5 t
Centre of gravity
500 mm
Standard tyres
SE 2x/2
Transmission type
W
Weight
6.8 t
Total width
1965 mm
Construction height
2400 mm
Turning radius
2.8 m
Lifting height
5.5 m
Travel speed with / without load
22/25 km/h
Hoisting with / without load
0.47/0.53 m/s
Lowering with load
0.5 m/s
max. climbing ability
21 %
Model series
FD
Engine manuf.
Mitsubishi
Engine type
S6S
Engine power
57 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Mitsubishi FD 50 CN overview

Mitsubishi FD 50 CN features overview

Other features

Long service interval and long life of components reduces downtime and associated costs. RapidAccess features give unequalled ease of entry to all areas for checks and maintenance.


Handling

Mast and fork assembly

Strong, high-visibility mast allows handling of heavy loads in tough environments with total confidence. Wide range of high-quality masts and attachments delivers precise compatibility and an ideal configuration for each application.


Performance

Drive

Industrially proved diesel engine is ultra-reliable and durable, as well as smooth and economical, and easily complies with emission control regulations. Advanced LPG engine with 3-way catalytic converter delivers precisely controlled performance, great fuel economy and very low emissions. Fully floating powertrain with two-speed forward and one-speed reverse transmission maximises gradeability and travel speed, minimises noise and vibration, and uses maintenance-free gears instead of belts to lower running costs. Adjustable transmission shift timing increases versatility, for optimum performance in a wide variety of applications. Large diameter drive axle shafts are extremely durable and require little maintenance. Low-noise air intake connects directly to intake filter for easy flow and quiet performance.


Safety

Frame and body

Stylish, purposeful design reflects this machine's power to work productively, non-stop, whatever the conditions. Robust construction provides high stability, rigidity and protection, with no exposed wires or hoses.


Cabin & Equipment

Options

Oil-cooled wet disc brakes and FlexControl intelligent truck protection package. VersaCab range of panel cabins. Fingertip hydraulic controls. Rear grip with integrated horn button. Load weight indicator. Overload indicator. Speed limiter.
