FD 50 CN Mitsubishi diesel forklift specs & dimensions (2010 - 2012)

The Mitsubishi FD 50 CN is a diesel forklift manufactured from 2010 to 2012. It has a weight of 6.9 tons and a nominal load at the…

The Mitsubishi FD 50 CN is a diesel forklift manufactured from 2010 to 2012. It has a weight of 6.9 tons and a nominal load at the center of gravity of 5 tons. The lifting height reaches up to 5 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 22 percent. The total width of the forklift is 1965 mm, and it has a turning radius of 2.76 meters. The construction height is 2400 mm.

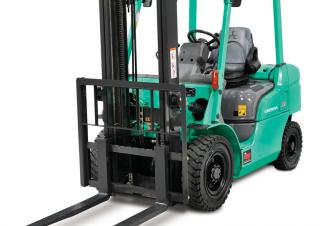

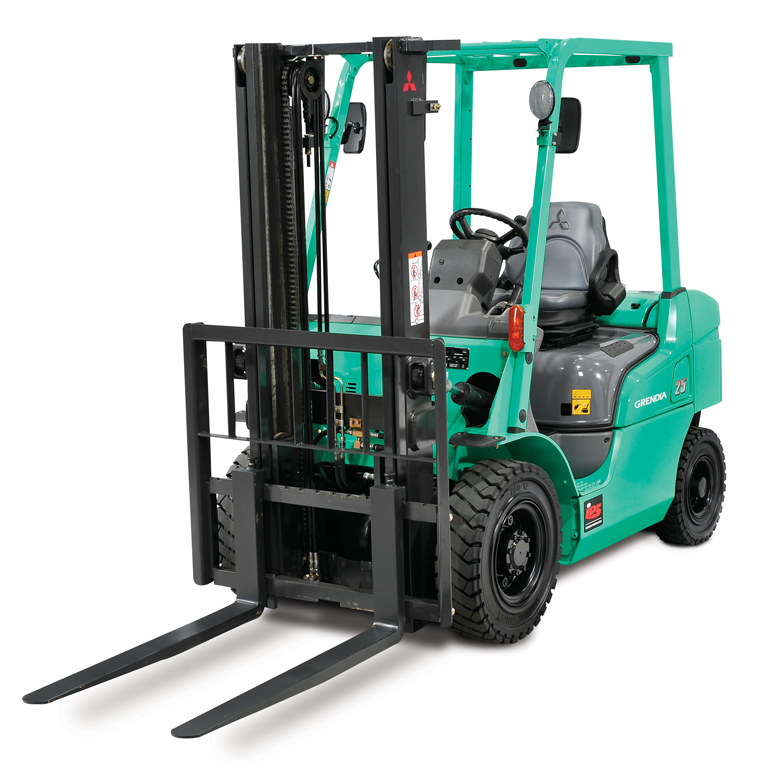

Diesel Forklifts Mitsubishi FD 50 CN

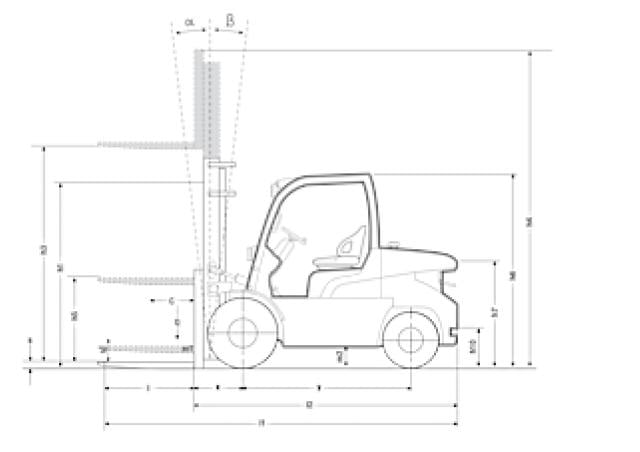

Mitsubishi FD 50 CN Dimensions and Size
Diesel Forklifts Mitsubishi FD 50 CN
Mitsubishi FD 50 CN Dimensions and Size

Technical specs - FD 50 CN Mitsubishi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
5 t
Centre of gravity
500 mm
Standard tyres
SE 2x/4
Transmission type
W
Weight
6.9 t
Total width
1965 mm
Construction height
2400 mm
Turning radius
2.76 m
Lifting height
5 m
Travel speed with / without load
21/22 km/h
Hoisting with / without load
0.47/0.53 m/s
Lowering with load
0.5 m/s
max. climbing ability
22 %
Model series
FD
Engine manuf.
Mitsubishi
Engine type
S6S
Engine power
59 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
