FD 180 T-MWK3-2 Maximal diesel forklift specs & dimensions (2010 - 2016)

The Maximal FD 180 T-MWK3-2 is a diesel forklift manufactured from 2010 to 2016. It has a weight of 26.3 tons and a nominal load a…

The Maximal FD 180 T-MWK3-2 is a diesel forklift manufactured from 2010 to 2016. It has a weight of 26.3 tons and a nominal load at the center of gravity of 18 tons. The lifting height reaches up to 3 meters, with a center of gravity at 1220 mm. It has a maximum climbing ability of 25 percent. The total width of the forklift is 2535 mm, and it can travel at a speed of 30 km/h with or without load. The turning radius is 5.3 meters, and the construction height is 3280 mm.

Diesel Forklifts Maximal FD 180 T-MWK3-2

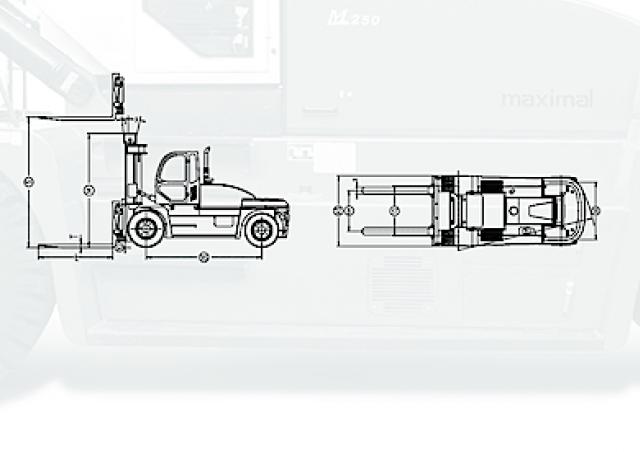

Maximal FD 180 T-MWK3-2 Dimensions and Size
Diesel Forklifts Maximal FD 180 T-MWK3-2
Maximal FD 180 T-MWK3-2 Dimensions and Size

Technical specs - FD 180 T-MWK3-2 Maximal

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
18 t
Centre of gravity
1220 mm
Standard tyres
VR 12.00-24-20PR HR 12.00-20-20PR
Weight
26.3 t
Total width
2535 mm
Construction height
3280 mm
Turning radius
5.3 m
Lifting height
3 m
Travel speed with / without load
30 km/h
Hoisting with / without load
0.32 m/s
Lowering with load
0.38 m/s
max. climbing ability
25 %
Model series
M
Engine manuf.
Cummins
Engine type
QSB6.7-C190
Engine power
142 kW
Emission level
EU III

More technical details, like: transmission type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
