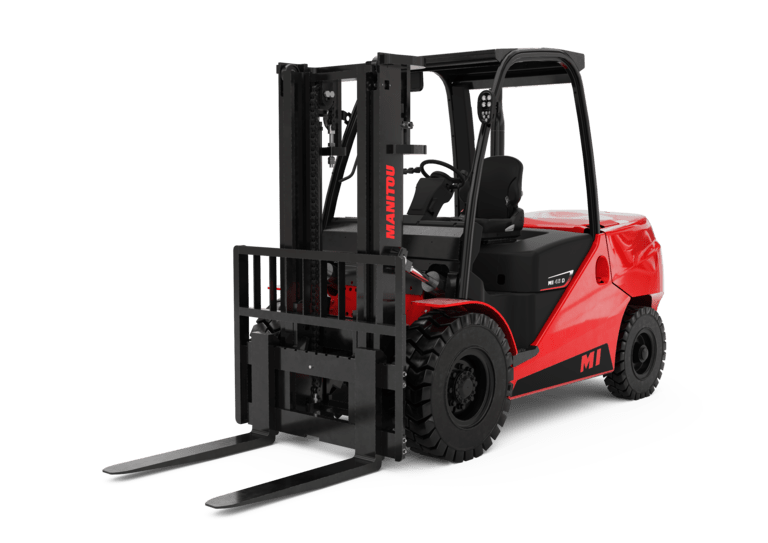

MI 45 D Manitou diesel forklift specs & dimensions (2021 - 2026)

The Manitou MI 45 D is a diesel forklift manufactured by Manitou since 2021. It has a weight of 6.63 tons and a nominal load at th…

The Manitou MI 45 D is a diesel forklift manufactured by Manitou since 2021. It has a weight of 6.63 tons and a nominal load at the center of gravity of 4.5 tons. The lifting height reaches up to 3 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 20 percent. The lowering speed with load is 0.5 m/s. The total width of the forklift is 1490 mm, and it has a turning radius of 2.8 meters. The construction height is 2390 mm.

Diesel Forklifts Manitou MI 45 D

Visit Manitou live at

Technical specs - MI 45 D Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4.5 t
Centre of gravity
500 mm
Standard tyres
300-15 18PR / 7.00-12 12PR
Transmission type
W
Weight
6.63 t
Total width
1490 mm
Construction height
2390 mm
Turning radius
2.8 m
Lifting height
3 m
Travel speed with / without load
13/23 km/h
Hoisting with / without load
0.49/0.52 m/s
Lowering with load
0.5 m/s
max. climbing ability
20 %
Model series
MI
Engine manuf.
Deutz
Engine type
TCD 2.9 L4
Engine power
55.4 kW
Displacement
2.92 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
