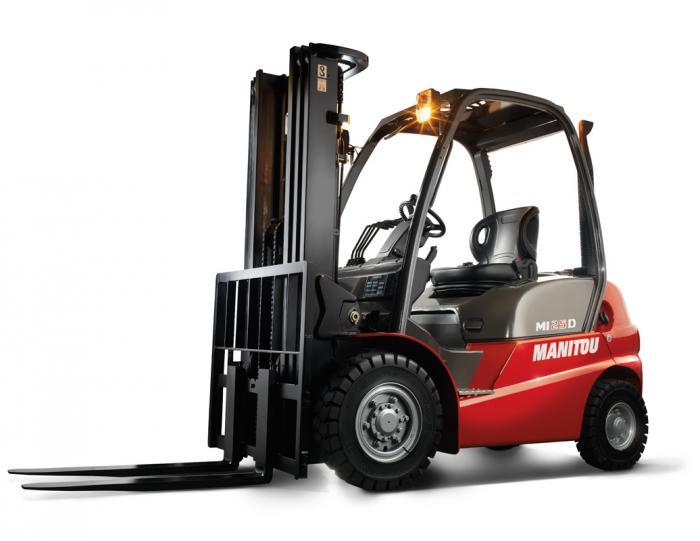

MI 20 D Manitou diesel forklift specs & dimensions (2012 - 2020)
Visit Manitou live at
Technical specs - MI 20 D Manitou
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2 t
- Centre of gravity
- 500 mm
- Standard tyres
- Pneumatic 2x/2
- Transmission type
- W
- Weight
- 3.73 t
- Total width
- 1155 mm
- Construction height
- 2115 mm
- Turning radius
- 2.2 m
- Lifting height
- 3.3 m
- Travel speed with / without load
- 18/18.5 km/h
- Hoisting with / without load
- 0.56/0.58 m/s
- Lowering with load
- 0.48/0.55 m/s
- max. climbing ability
- 20 %
- Model series
- MI
- Engine manuf.
- Yanmar
- Engine type
- 4TNE98-BQFLC
- Engine power
- 42.1 kW
- Displacement
- 3.319 l
- Revolutions at max torque
- 2300 rpm
- No. of cylinders
- 4
- Emission level
- III A
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
